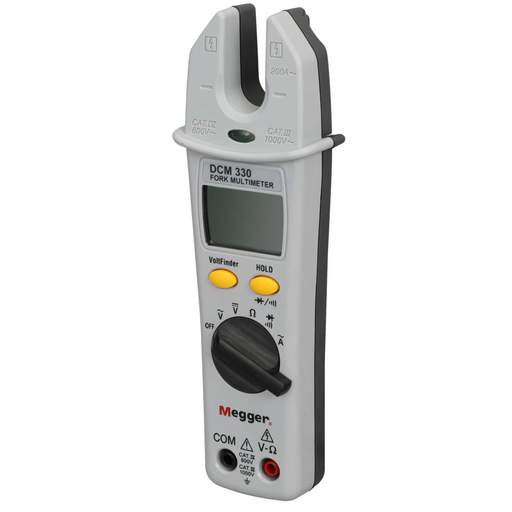

Megger DCM330 200A Digital Fork Clamp Multimeter
Part Code: DCM330
Stock Code: 0612-7594
Megger DCM330 200A Digital Fork Clamp Multimeter
Part Code: DCM330
Stock Code: 0612-7594
Delivery
3 In Stock
Free delivery on orders over £50
£5.95 Delivery on orders under £50
Features
- Digital open jaw AC clamp meter with non contact voltage
- Current measurement up to 200A AC
- Voltage measurement up to 1000V AC/DC
- Resistance measurement up to 20MΩ
- Voltage detection function can identify the presence of live AC voltages from 50V to 1000V
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Ac Current Measurement
- 200A
- Ac Voltage Measurement
- 1000V AC
- Auto Power Down
- Yes
- Auto Ranging
- Yes
- Battery Level Indicator
- Yes
- Battery Size
- AAA
- Battery Type
- Alkaline
- Continuity Check
- Yes
- Data Hold
- Yes
- Dc Voltage Measurement
- 1000V DC
- Depth
- 31mm
- Dimensions
- (H)193 mm x (W)54 mm x (D)31 mm
- Display Count
- 2000
- Display Type
- LCD
- Guarantee
- 1 Year
- Height
- 193mm
- Humidity Range
- Up to 80% RH
- Jaw Opening Capability
- 16mm
- Non Contact Measurement
- Yes
- Number of Batteries
- 2
- Operating Temperature Range
- 0 - 50°C
- Packaging Types
- Each
- Product Range
- Clamp Meter
- Resistance Measurement
- 20 MΩ
- Safety Range
- CAT III 1000V, CAT IV 600V
- Standards
- EN 61010, EN 61326
- Storage Temperature Range
- -20 - 60°C
- Supplied With
- Test Leads, Batteries, User Guide and Carry Case
- Type
- AC Open Jaw Clamp Meter
- Unspsc V18
- 41113678
- Unspsc V24
- 41113678
- Weight
- 0.5kg
- Width
- 54mm
