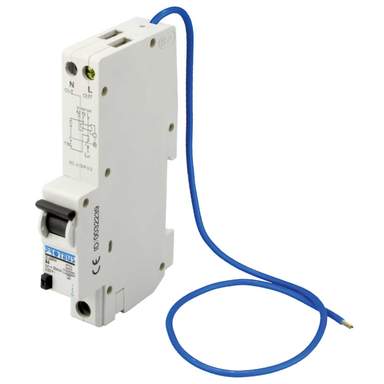

Proteus XL 20A Single Pole and Neutral 1 Module B Curve 10kA 30mA Type A RCBO
- Part Code: XL20BR
- Stock Code: 0723-6787
- Residual current circuit breaker with overload
- Suitable for AX, ABX, BX, XL, CBX, MCX and PDU boards
- 6A to 45A current ratings available
- 30mA earth leakage rating, Type A earth leakage protection
- Thermal-Magnetic operation
- Current limiting B Curve operating characteristics
- Mechanical Flag Indicator shows ON or OFF
- Operating dolly may be locked in either the ON or OFF position
- Contacts are manufactured from carefully chosen materials
- Selected for their low electrical resistance and low propensity to weld under fault conditions
Specification
| Brand | Proteus XL |
| Colour | Grey |
| Current Rating | 20A |
| Depth | 66.8mm |
| Dimensions | (H)124.5 mm x (W)17.7 mm x (D)66.8 mm |
| Guarantee | 1 Year |
| Height | 124.5mm |
| Incoming Terminal Capacity | 25mm² |
| Material | PBT case |
| Mounting | DIN Rail |
| Number of Modules | 1 |
| Number of Poles | Single Pole and Neutral |
| Outgoing Terminal Capacity | 10mm² |
| Packaging Types | Each |
| Product Range | Proteus RCBO |
| Rcd Type | A |
| Short Circuit Rating | 10kA |
| Standards | BS EN 61009 |
| Tripping Characteristics | B Curve |
| Tripping Sensitivity | 30mA |
| Unspsc V18 | 39121601 |
| Voltage Rating | 230V |
| Weight | 0.2kg |
| Width | 17.7mm |
