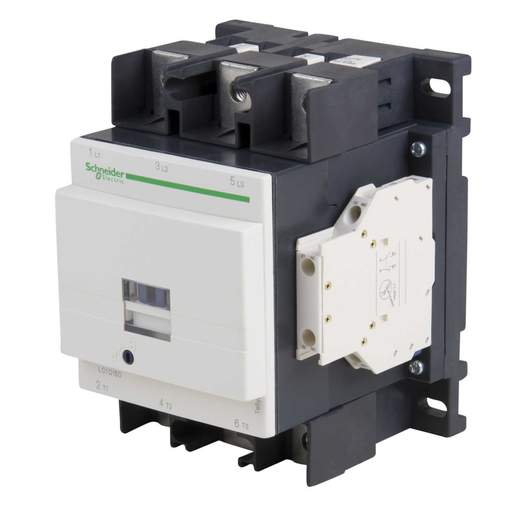

Schneider Telemecanique 150A Contactor 3 Pole 3 NO 110V AC Coil
Part Code: LC1D1506F7
Stock Code: 0083-6725
Schneider Telemecanique 150A Contactor 3 Pole 3 NO 110V AC Coil
Part Code: LC1D1506F7
Stock Code: 0083-6725
Delivery
2 In Stock
Free delivery on orders over £50
£5.95 Delivery on orders under £50
Features
- Suitable for resistive and inductive loads
- Operating temperature: -5 to 60°C
- With safety cover
- For DIN rail or screw panel / base mounting
- EN 60947-5-1, EN 60947-4-1
- Please note product colour may vary from the product image
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Schneider Telemecanique
- Auxiliary Contact
- 1 NO + 1 NC
- Coil Voltage
- 110V AC
- Colour
- Black/Grey
- Contact Configuration
- 3 NO
- Current Rating Ac1
- 200A
- Current Rating Ac3
- 150A
- Depth
- 136mm
- Dimensions
- (H)158 mm x (W)120 mm x (D)136 mm
- Frequency
- 50/60 Hz
- Full Load Current
- 150A
- Guarantee
- 18 Months
- Height
- 158mm
- IP Rating
- IP2X
- Mounting
- DIN Rail / Plate
- Number of Poles
- 3 Pole
- Packaging Types
- Each
- Product Range
- TeSys D
- Standards
- EN 60947, IEC 60947, UL 508, CSA C22.2 No 14
- Type
- Contactor
- Unspsc V18
- 39121529
- Unspsc V24
- 39121529
- Voltage Rating
- 110V
- Weight
- 2.214kg
- Width
- 120mm
- kW Rating
- 80kW
