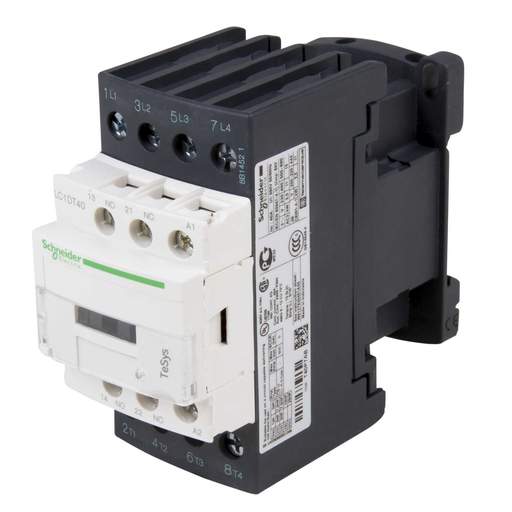

Schneider Telemecanique TeSys D 40A Contactor 4 Pole 4 NO Contacts 230V AC Coil
Part Code: LC1DT40P7
Stock Code: 0084-1810
Schneider Telemecanique TeSys D 40A Contactor 4 Pole 4 NO Contacts 230V AC Coil
Part Code: LC1DT40P7
Stock Code: 0084-1810
Delivery
17 In Stock
Free delivery on orders over £50
£5.95 Delivery on orders under £50
Features
- Suitable for resistive loads
- Operating temperature: -5 to 55°C
- For DIN rail or screw panel / base mounting
- EN 60947-4-1, EN 60947-5-1
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Schneider Telemecanique
- Auxiliary Contact
- 1 NO + 1 NC
- Coil Voltage
- 230V AC
- Contact Configuration
- 4 NO
- Current Rating Ac1
- 40A
- Depth
- 99mm
- Dimensions
- (H)91 mm x (W)45 mm x (D)99 mm
- Frequency
- 50/60 Hz
- Guarantee
- 18 Months
- Height
- 91mm
- IP Rating
- IP2X
- Mounting
- DIN Rail / Plate
- Number of Poles
- 4 Pole
- Packaging Types
- Each
- Product Range
- TeSys D
- Standards
- EN 60947, UL 508, CSA C22.2 No 14
- Unspsc V18
- 39121529
- Unspsc V24
- 39121529
- Voltage Rating
- 600V
- Weight
- 0.478kg
- Width
- 45mm
