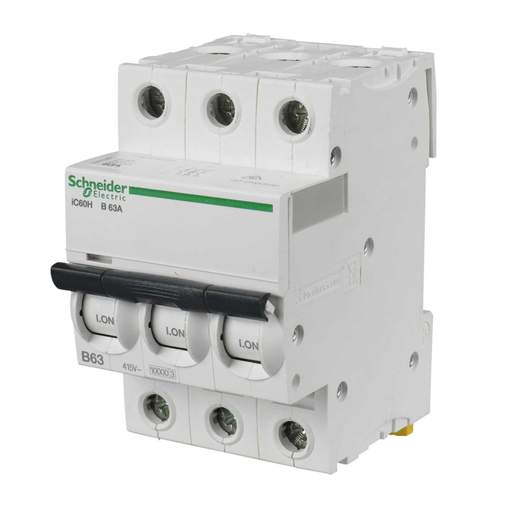

Schneider Acti9 63A Triple Pole 10kA B Curve MCB
Part Code: A9F53363
Stock Code: 1671-8182
Schneider Acti9 63A Triple Pole 10kA B Curve MCB
Part Code: A9F53363
Stock Code: 1671-8182
Delivery
64 In Stock
Free delivery on orders over £50
£5.95 Delivery on orders under £50
Features
- Operating cycles on load 20000
- Contact position indicator
- Thermal magnetic trip unit technology
- 10kA breaking capacity
- Voltage rating 240V-440V AC
- Operating temperature -30°C-70°C
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Current Rating
- 63A
- Depth
- 78.5mm
- Dimensions
- (H)85 mm x (W)54 mm x (D)78.5 mm
- Guarantee
- 1 Year
- Height
- 85mm
- Mounting
- DIN Rail
- Number of Poles
- Triple Pole
- Packaging Types
- Each
- Product Range
- Acti9
- Short Circuit Rating
- 10kA
- Standards
- BS EN 60898
- Tripping Characteristics
- B Curve
- Type
- Circuit Breaker
- Unspsc V18
- 39121603
- Unspsc V24
- 39121603
- Voltage Rating
- 230V
- Weight
- 0.404kg
- Width
- 54mm
