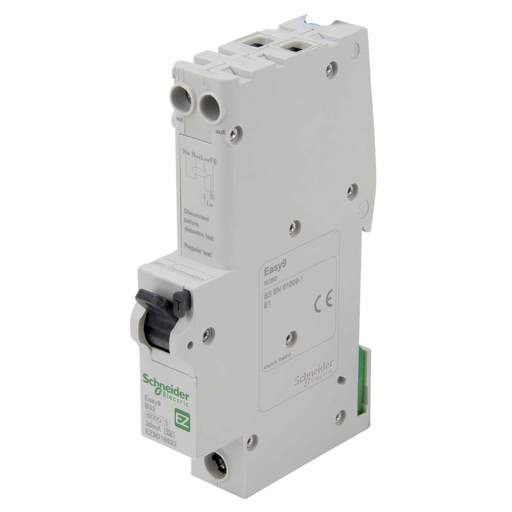

Schneider Easy9 32A 1P+N 1 Module B Curve 6kA 30mA Type A RCBO
Part Code: EZ9D16832
Stock Code: 1712-1391
Schneider Easy9 32A 1P+N 1 Module B Curve 6kA 30mA Type A RCBO
Part Code: EZ9D16832
Stock Code: 1712-1391
Delivery
Back in stock 28th July
Features
- Protection from short circuits
- Protection of cable from overloads
- Protection of persons from electric shocks by direct contact
- Can be fitted instead of a minature circuit breaker for complete protection
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Current Rating
- 32A
- Guarantee
- 1 Year
- Mounting
- DIN Rail
- Number of Modules
- 1
- Number of Poles
- Single Pole and Neutral
- Packaging Types
- Each
- Product Range
- Easy9+
- Rcd Type
- A
- Short Circuit Rating
- 6kA
- Standards
- BS EN 61009
- Tripping Characteristics
- B Curve
- Tripping Sensitivity
- 30mA
- Unspsc V18
- 39121601
- Unspsc V24
- 39121601
- Voltage Rating
- 230V
- Voltimum+Points
- 104
- Weight
- 0.236kg
