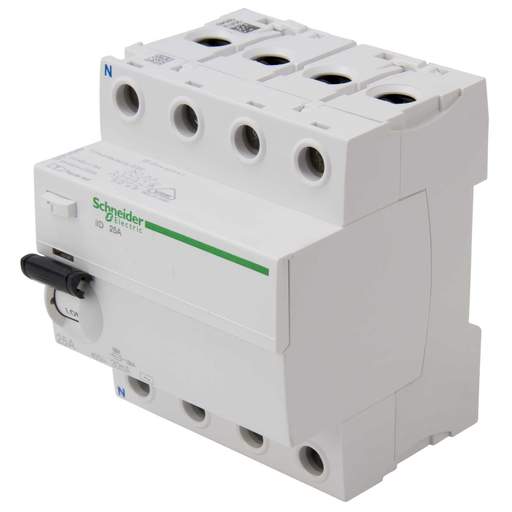

Schneider Square D IKQ 25A 4 Pole 30mA Type AC RCD
Part Code: SED25034
Stock Code: 1852-9717
Schneider Square D IKQ 25A 4 Pole 30mA Type AC RCD
Part Code: SED25034
Stock Code: 1852-9717
Delivery
2 In Stock
Free delivery on orders over £50
£5.95 Delivery on orders under £50
Features
- Suitable for Loadcentre KQ Boards
- Test Button enables RCD to be tested periodically
- 30mA device suitable for use as additional protection on final sub circuits
- Rated voltage 230/415V AC 50/60 Hz
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Schneider Square D
- Current Rating
- 25A
- Depth
- 75mm
- Dimensions
- (H)81 mm x (W)72 mm x (D)75 mm
- Guarantee
- 1 Year
- Height
- 81mm
- Mounting
- DIN Rail
- Number of Modules
- 4
- Number of Poles
- 4 Pole
- Packaging Types
- Each
- Product Range
- Acti9
- Rcd Type
- AC
- Short Circuit Rating
- 6kA
- Standards
- BS EN 61008
- Tripping Sensitivity
- 30mA
- Unspsc V18
- 39121614
- Unspsc V24
- 39121614
- Voltage Rating
- 230V 400V
- Voltimum+Points
- 153
- Weight
- 0.059kg
- Width
- 72mm
