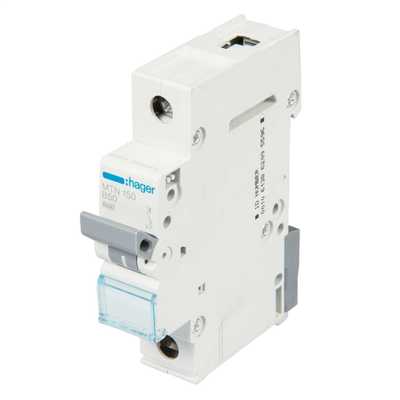

Hager 50A Single Pole 6kA B Curve MCB

  • Part Code: MTN150
  • Stock Code: 0012-9745
Hager
  • Type B tripping characteristics complies with BS EN 60898.
  • Calibration temperature 30°C
  • Breaking capacity: 6kA
  • Connection capacity: Rigid conductor 25mm2, Flexible conductor 16mm2

Specification

Current Rating 50A
Dimensions (W)17.5 mm
Guarantee 2 Years
Incoming Terminal Capacity 25mm²
Mounting Din Rail
Number of Modules 1
Number of Poles Single Pole
Outgoing Terminal Capacity 25mm²
Packaging Types Each
Product Range MCBs
Short Circuit Rating 6kA
Standards BS EN 60898
Tripping Characteristics B Curve
Unspsc 39121603
Voltage Rating 230V
Weight 0.1278kg
Width 17.5mm
