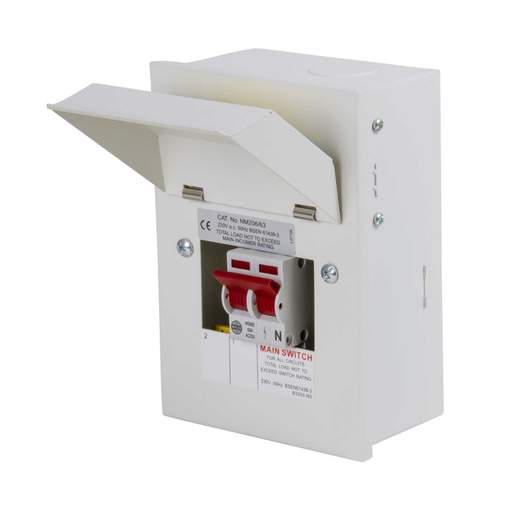

Wylex 2 Way 63A Isolator Incomer Metal Clad Consumer Unit
Part Code: NM206/63
Stock Code: 1987-8067
Wylex 2 Way 63A Isolator Incomer Metal Clad Consumer Unit
Part Code: NM206/63
Stock Code: 1987-8067
Delivery
101 In Stock
Free delivery on orders over £50
£5.95 Delivery on orders under £50
Features
- All metal enclosure, no external plastic parts
- Low smoke and fume paint
- Non combustible cover blanks
- Compact enclosure
- Available in ‘no miss terminal’ fixed busbar versions and flexible versions
- Raised and removable DIN rail / busbar assembly
- Cable entry knockouts on 5 sides, top, bottom, left, right and rear
- Mains tails cable entry grommet / gland for supplementary insulation similar to Class II level of protection to mains tails
- Up to 38 way units, all designs main switch, high integrity, split load, dual RCD
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Wylex
- Current Rating
- 63A
- Depth
- 104mm
- Dimensions
- (H)185 mm x (W)130 mm x (D)104 mm
- Guarantee
- 1 Year
- Height
- 185mm
- IP Rating
- IP2XC
- Incoming Device
- 100A DP Isolator
- Mounting
- Surface
- Number of Outgoing Ways
- 2
- Packaging Types
- Each
- Standards
- BS EN 61439-3
- Surge Protection Fitted
- No
- Surge Protection Ready
- No
- Unspsc V18
- 39121110
- Unspsc V24
- 39121110
- Voltage Rating
- 230V
- Weight
- 1.25kg
- Width
- 130mm
