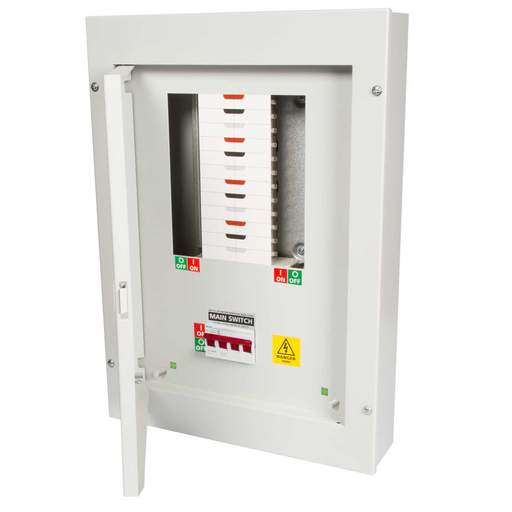

MCG 8 Way TP+N Type B Distribution Board with 125A Incomer
Part Code: TPNR8-SD
Stock Code: 1993-9291
MCG 8 Way TP+N Type B Distribution Board with 125A Incomer
Part Code: TPNR8-SD
Stock Code: 1993-9291
Delivery
Collection Only
Features
- 4 Pole 125A incomer included
- Quality steel construction [1.2mm thick]
- Polyester powder coated [Colour RAL7035]
- Ease of installation features
- Reversible door
- Retained screws
- KEMA certified
- M6 wall installation bolts
- Fixing and labelling kit
- Accessory pack
- Installation instructions
- Converts to 3 pole with neutral bridge [available separately]
- Can convert to single-phase with conversion kit [available separately]
- This product is no longer available to order online - Please check local store for stock
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Branch Collection Only
- Yes
- Cable Entry
- Top and Bottom Gland Plates
- Compliance
- UKCA, CE
- Current Rating
- 125A
- Depth
- 95.2mm
- Dimensions
- (H)565 mm x (W)405 mm x (D)95.2 mm
- Door Type
- Reversible Hinged Door
- Guarantee
- 1 Year
- Height
- 565mm
- IP Rating
- IP40
- Incoming Device
- 125A 4P Isolator
- Incoming Terminal Capacity
- 35 mm
- Lockable
- No
- Material
- Sheet Steel
- Mounting
- Surface
- Number of Outgoing Ways
- 8
- Packaging Types
- Box
- Standards
- BS EN 60439
- Supplied With
- 4 Pole 125A Incomer, M6 Wall Installation Bolts, Fixing and Labelling Kit, Accessory Pack and Installation Instructions
- Unspsc V18
- 39121110
- Unspsc V24
- 39121110
- Voltage Rating
- 500V
- Weight
- 11.5kg
- Width
- 405mm
