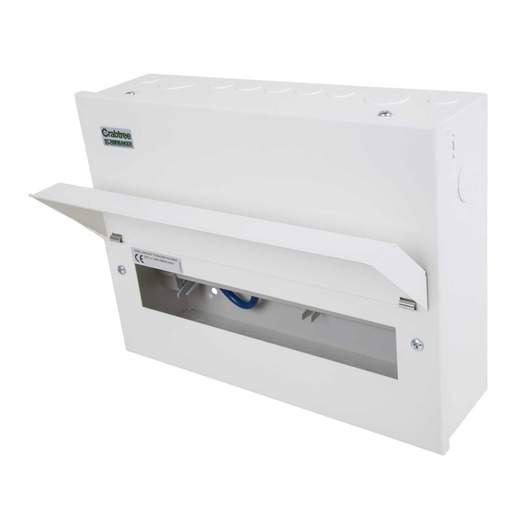

Crabtree Starbreaker 15 Way Metal Clad Consumer Unit (No Incomer)
Part Code: 515/0A
Stock Code: 1993-9750
Crabtree Starbreaker 15 Way Metal Clad Consumer Unit (No Incomer)
Part Code: 515/0A
Stock Code: 1993-9750
Delivery
4 In Stock
Free delivery on orders over £50
£5.95 Delivery on orders under £50
Features
- Raised keyhole slots for easy mounting on uneven surfaces
- Ample wiring space
- Adequate knock-outs in robust metal box for side or rear entry of wiring
- All enclosures are supplied ready prepared for the unique busbar to be easily fitted into place
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Current Rating
- 100A
- Depth
- 121mm
- Dimensions
- (H)261 mm x (W)343 mm x (D)121 mm
- Guarantee
- 1 Year
- Height
- 261mm
- IP Rating
- IP2XC
- Incoming Device
- Not Supplied
- Material
- Metal Cased with Steel Front Cover
- Mounting
- Surface
- Number of Modules
- 15
- Number of Outgoing Ways
- 15
- Packaging Types
- Each
- Product Range
- Starbreaker
- Standards
- BS EN 60439
- Surge Protection Fitted
- No
- Surge Protection Ready
- No
- Unspsc V18
- 39121318
- Unspsc V24
- 39121318
- Weight
- 3.6kg
- Width
- 343mm
