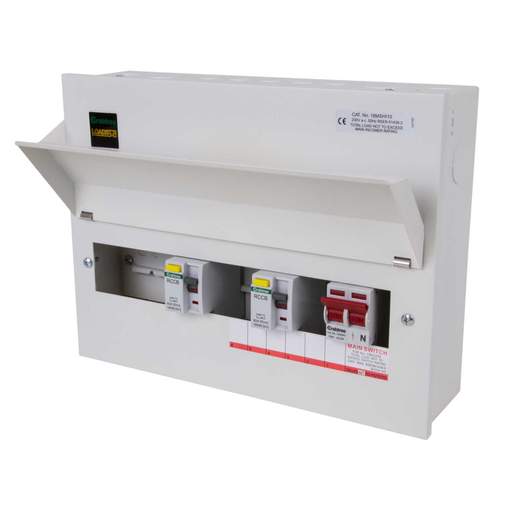

Crabtree Loadstar 10 Way Flexible Dual 80A RCD High Integrity Metal Clad Consumer Unit
Part Code: 18MSHI10
Stock Code: 1994-0020
Crabtree Loadstar 10 Way Flexible Dual 80A RCD High Integrity Metal Clad Consumer Unit
Part Code: 18MSHI10
Stock Code: 1994-0020
Delivery
7 In Stock
Free delivery on orders over £50
£5.95 Delivery on orders under £50
Features
- Supplied with 2 x 80A 30mA RCDs and 1 x 100A DP isolator

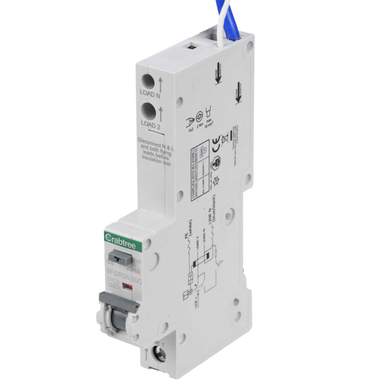

- Both MCBs and RCBOs may be included for final circuit positions that are not protected by resident RCDs
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Current Rating
- 100A
- Depth
- 121mm
- Dimensions
- (H)261 mm x (W)343 mm x (D)121 mm
- Door Type
- Top Hinged
- Guarantee
- 1 Year
- Height
- 261mm
- IP Rating
- IP2XC
- Incoming Device
- 100A DP Isolator
- Material
- Metalclad
- Mounting
- Surface
- Number of Outgoing Ways
- 10
- Packaging Types
- Each
- Product Range
- Loadstar
- Rcd Rating
- 80A
- Rcd Type
- AC
- Surge Protection Fitted
- No
- Surge Protection Ready
- No
- Tripping Sensitivity
- 30mA
- Unspsc V18
- 39121110
- Unspsc V24
- 39121110
- Voltage Rating
- 230V
- Weight
- 5.75kg
- Width
- 343mm
