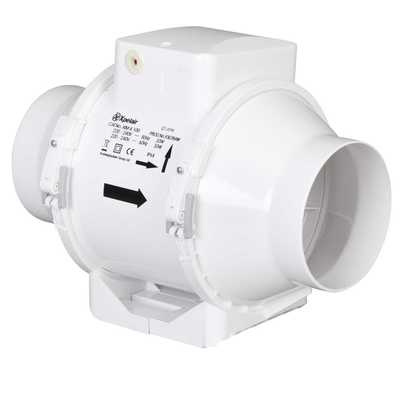

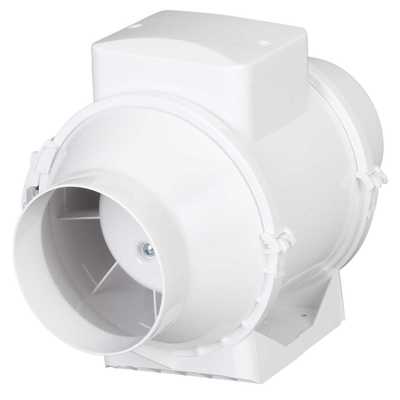

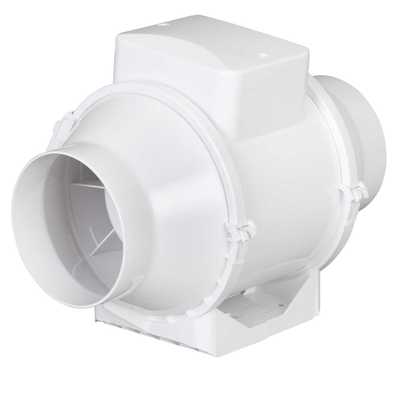

Xpelair XIMX100 100mm 4" Inline Mixed Flow Fan

  • Part Code: 93078AW
  • Stock Code: 2196-6373
Xpelair
Xpelair_93078aw-b_6f128f6b88eb2fdfae32e58c10a6c2f6
Xpelair_93078aw-c_efa8e063473838a6ebbce7c91d3edf29
Xpelair_93078aw-a_af7d8d0d9ef5b1eb4ec5c8302f667bc8
Xpelair_93078aw-b_6f128f6b88eb2fdfae32e58c10a6c2f6
Xpelair_93078aw-c_efa8e063473838a6ebbce7c91d3edf29
Xpelair_93078aw-a_af7d8d0d9ef5b1eb4ec5c8302f667bc8
  • Two speed
  • Lubricated for life, maintenance free motors with thermal cut out protection
  • Centrifugal impellers for improved airflow
  • Part F compliant for installation in bathrooms

Specification

Airflow Cubic Metresper Hour 145 / 187 m³/h
Airflow Litresper Second 40 / 52 l/s
Decibel Rating 27 / 36 dB[A] @ 3 m
Diameter 100mm
Dimensions (L)246 mm x (Dia)100 mm x (H)190 mm
Ducting Size 100mm
Frequency 50/60 Hz
Guarantee 2 Years
Height 190mm
IP Rating IPX4
Length 246mm
Number of Speeds 2
Operation Type Standard
Packaging Types Each
Power Rating 21W 33W
Product Range Xpelair
Suitable For Commercial
Supplied With Mounting Cradle
Unspsc 40101604
Voltage Rating 230V
Weight 1.70000kg
