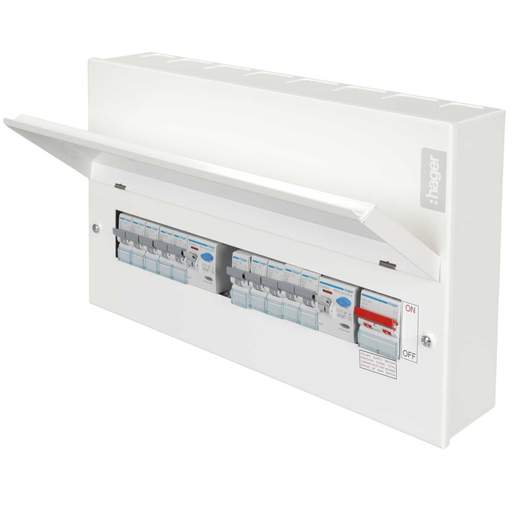

Hager 6 + 6 Dual 100A RCD Metal Clad Consumer Unit with 10 x MCBs
Part Code: VML966H+MCB
Stock Code: 2481-8989
Hager 6 + 6 Dual 100A RCD Metal Clad Consumer Unit with 10 x MCBs
Part Code: VML966H+MCB
Stock Code: 2481-8989
Delivery
3 In Stock
Free delivery on orders over £50
£5.95 Delivery on orders under £50
Features
- 6 + 6 way split load consumer unit
- Supplied with 2 x 100A 30mA Type A RCDs and 1 x 100A DP isolator and 10 x MCBs
- MCBs supplied are 3 x 6A, 1 x 10A, 2 x 16A, 3 x 32A and 1 x 40A
- Comes with a full complement of earth and neutral terminals along with marking labels, busbar and instructions
- Design 10 consumer units come with top, bottom, rear knockouts and a meter tail cable entry plate
- Design 10 board has ample cable space available even when RCBOs are fitted. The top mounted terminal rail makes the wiring of the neutral and earth connections neat and simple
- Conforms to BS EN 61439-3 Including Annex ZB
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Board Configuration
- 6 + 6
- Cable Entry
- Selection of Knockouts
- Current Rating
- 100A
- Depth
- 100mm
- Dimensions
- (H)246 mm x (W)406 mm x (D)100 mm
- Door Type
- Top Hinged
- Guarantee
- 2 Years
- Height
- 246mm
- IP Rating
- IP2XC
- Incoming Device
- 100A DP Isolator
- Incoming Terminal Capacity
- 50mm²
- Knockouts
- Square
- Material
- Steel
- Mounting
- Surface
- Number of Modules
- 18
- Number of Outgoing Ways
- 12
- Packaging Types
- Each
- Product Range
- Design 10
- Rcd Rating
- 100A
- Rcd Type
- A
- Standards
- BS EN 61439-3
- Supplied With
- 3 x 6A, 1 x 10A, 2 x 16A, 3 x 32A and 1 x 40A Type B 6kA MCB's
- Surge Protection Fitted
- No
- Surge Protection Ready
- No
- Tripping Sensitivity
- 30mA
- Unspsc V18
- 39121110
- Unspsc V24
- 39121110
- Voltage Rating
- 230V
- Weight
- 4.92kg
- Width
- 406mm
