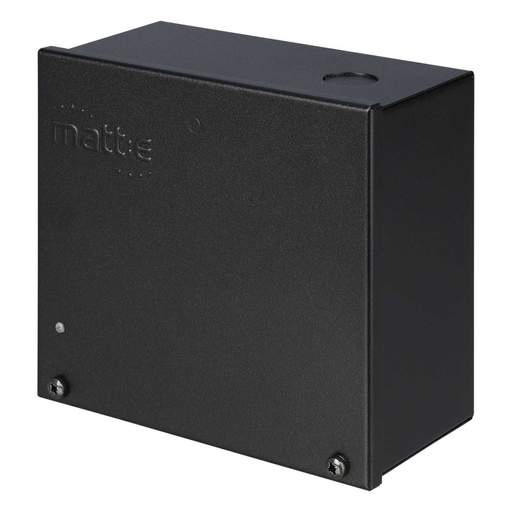

Matt:e Single Phase EV Voltage Monitoring and Protection Unit
Part Code: SP-EVCP-T
Stock Code: 2598-3556
Matt:e Single Phase EV Voltage Monitoring and Protection Unit
Part Code: SP-EVCP-T
Stock Code: 2598-3556
Delivery
52 In Stock
Free delivery on orders over £50
£5.95 Delivery on orders under £50
Features
- Built-in matt:e technology, which allows for the connection of 1 x 32A single phase charge point to the existing PME earthing facility
- Incorporates unique monitoring device which disconnects all poles including CPC in the event of a fault
- No earth electrodes required
- BS:7671 18th Edition compliant
- Suitable for 1 x 32A load
- Standard 3 year parts warranty
- Simple wire in, wire out connection
- Standard mild steel IPX2 enclosure
- Designed and built in the UK
Downloads
-
Matt e SP-EVCP-T Datasheet
(289.59 KB)
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Black
- Current Rating
- 32A
- Depth
- 96mm
- Dimensions
- (H)169 mm x (W)182 mm x (D)96 mm
- Finish
- Powder Coated
- Frequency
- 50 Hz
- Guarantee
- 3 Years
- Height
- 169mm
- IP Rating
- IPX2
- Material
- Mild Steel
- Number of Ways
- 1
- Packaging Types
- Each
- Unspsc V18
- 39121110
- Voltage Rating
- 230V
- Weight
- 3kg
- Width
- 182mm
