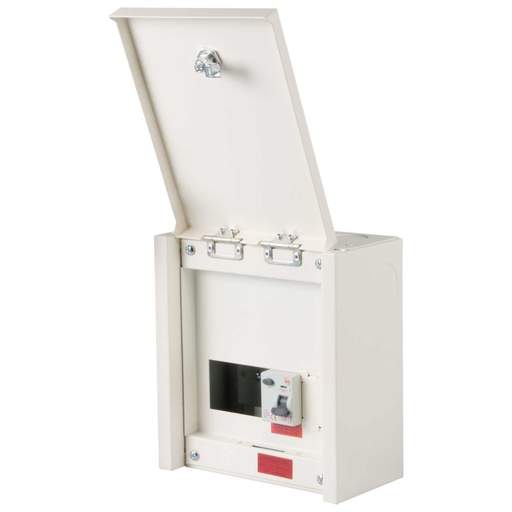

M2 4 Way 80A 30mA Type A RCD Incomer Metal Clad Consumer Unit
Part Code: AM2R804MUA
Stock Code: 2609-7136
M2 4 Way 80A 30mA Type A RCD Incomer Metal Clad Consumer Unit
Part Code: AM2R804MUA
Stock Code: 2609-7136
Delivery
Unknown delivery date
Features
- Amendment 3 compliant
- 80A 30mA DP Type A RCD Incomer
- Optional key lock available
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- M2
- Cable Entry
- Selection of Knockouts / Cutouts
- Compliance
- BSEN61439-3
- Current Rating
- 80A
- Depth
- 110mm
- Dimensions
- (H)220 mm x (W)201 mm x (D)110 mm
- Door Type
- Top Hinged
- Guarantee
- 25 Years
- Height
- 220mm
- IP Rating
- IP4XC
- Incoming Device
- 80A 30mA Type A RCD
- Incoming Terminal Capacity
- 50mm²
- Material
- Steel
- Mounting
- Surface
- Number of Modules
- 8
- Number of Outgoing Ways
- 4
- Packaging Types
- Each
- Product Range
- M2 Metalclad
- Rcd Rating
- 80A
- Rcd Type
- A
- Standards
- BSEN61439-3
- Surge Protection Fitted
- No
- Surge Protection Ready
- Yes
- Tripping Sensitivity
- 30mA
- Unspsc V18
- 39121110
- Unspsc V24
- 39121110
- Voltage Rating
- 230V
- Weight
- 2.556kg
- Width
- 201mm
