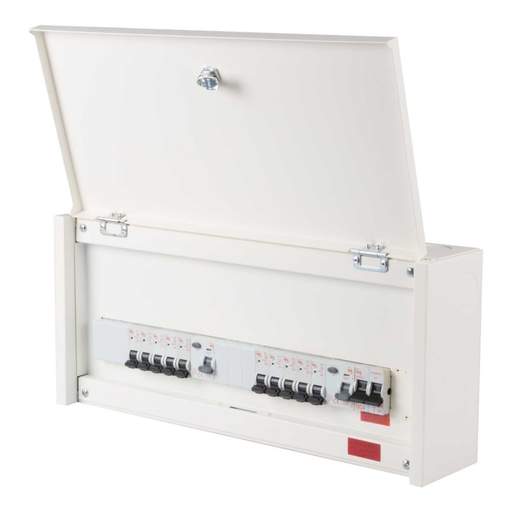

M2 8 + 8 Dual 80A Type A RCD Metal Clad Consumer Unit with 10 x MCBs
Part Code: ACP88CM2XMUA
Stock Code: 2609-7160
M2 8 + 8 Dual 80A Type A RCD Metal Clad Consumer Unit with 10 x MCBs
Part Code: ACP88CM2XMUA
Stock Code: 2609-7160
Delivery
3 In Stock
Free delivery on orders over £50
£5.95 Delivery on orders under £50
Features
- Supplied with 2 x 80A 30mA Type A RCDs, 1 x 100A DP isolator and full complement of earth and neutral terminals along with marking labels, busbar and instructions
- Complete with 2 x 6A, 1 x 10A, 2 x 16A, 1 x 20A, 3 x 32A and 1 x 40A B Curve 6kA MCBs
- Amendment 3 compliant
- Non-combustible enclosure
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- M2
- Board Configuration
- 8 + 8
- Cable Entry
- Selection of Knockouts/ Cutouts
- Colour
- White
- Compliance
- BSEN61439-3
- Current Rating
- 100A
- Depth
- 110mm
- Dimensions
- (H)220 mm x (W)489 mm x (D)110 mm
- Door Type
- Top Hinged
- Guarantee
- 25 Years
- Height
- 220mm
- IP Rating
- IP4XC
- Incoming Device
- 100A Isolator
- Incoming Terminal Capacity
- 35mm²
- Material
- Steel
- Mounting
- Surface
- Number of Modules
- 24
- Number of Outgoing Ways
- 16
- Packaging Types
- Each
- Product Range
- M2 Metalclad
- Rcd Rating
- 80A
- Rcd Type
- A
- Standards
- BSEN61439-3
- Supplied With
- 2 x 6A, 1 x 10A, 2 x 16A, 1 x 20A, 3 x 32A and 1 x 40A B Curve 6kA MCBs
- Surge Protection Fitted
- No
- Surge Protection Ready
- Yes
- Tripping Sensitivity
- 30mA
- Unspsc V18
- 39121110
- Voltage Rating
- 230V
- Weight
- 5.545kg
- Width
- 489mm
