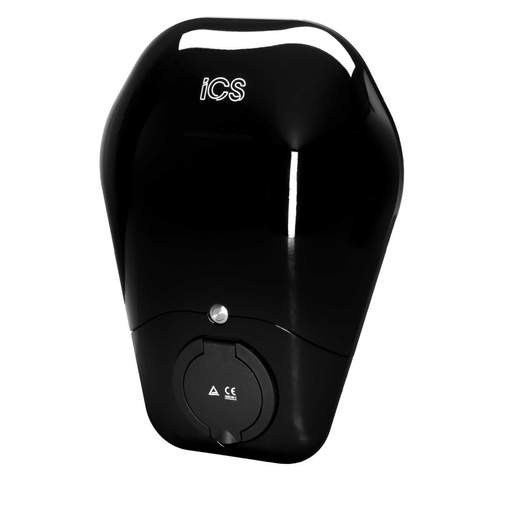

ICS 7kW W7C Intelligent EV Charging Station with 32A Type 2 Socket
Part Code: ICSW7C
Stock Code: 2634-1642
ICS 7kW W7C Intelligent EV Charging Station with 32A Type 2 Socket
Part Code: ICSW7C
Stock Code: 2634-1642
Delivery
50 In Stock
Free delivery on orders over £50
£5.95 Delivery on orders under £50
Features
- 7.2kW fast AC charging
- Up to 30 miles charging range per hour
- Single phase 230VAC
- No earth rod required [on TN-C-S PME system]
- 3G/4G sim, ethernet and Wi-Fi ready
- Built in current detection 30mA AC and 6mA DC
- RFID authentication
- 2.8" LCD display
- Full OCPP 1.6J protocols including smart charging
- Automatic minor fault recovery with configurable manual reset for RCD and earth fault
- Independent back plate design for easy first fix
- Supplied with 2 x RFID cards
- iCS2.0 smart charging software compatible
- iCS2.0Lite included for smart phone configuration and app control
- OZEV workplace and home scheme approved
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Charging Access
- Free to Use / App / RFID
- Charging Mode
- 3
- Charging Power
- 7.2kW
- Colour
- Black
- Compliance
- CE
- Connectivity
- 4G Ethernet Wi-Fi
- Current Rating
- 32A
- Depth
- 146mm
- Dimensions
- (H)360 mm x (W)269 mm x (D)146 mm
- Dynamic Load Managemen
- Yes
- Ev Type
- Type 2
- Frequency
- 50/60 Hz
- Guarantee
- 3 Years
- Height
- 360mm
- IP Rating
- IP55
- Lockable
- No
- Metered
- Yes
- Mounting
- Wall / Pedestal [Sold Separately]
- Number of Chargepoints
- 1
- Number of Ways
- 1
- Ocpp Compliant
- OCPP 1.6
- off Peak Charging
- Yes
- Operating Temperature Range
- -40 - 45°C
- Output Type
- Type 2 Socket
- Ozev Approval
- EVHS / WCS
- Packaging Types
- Each
- Pen Fault Protection
- Yes
- Product Range
- ICSW
- Socket Protection
- Overload, DC Sensitive and Fault Current Protected
- Standards
- OCCP, IEC61851-1
- Status Indicator
- LED
- Suitable For
- Home / Public / Workplace
- Type
- Mode 3
- Unspsc V18
- 25175002
- Unspsc V24
- 25175002
- Voltage Rating
- 230V
- Weight
- 5.64kg
- Width
- 269mm
- kW Rating
- 7.2kW
