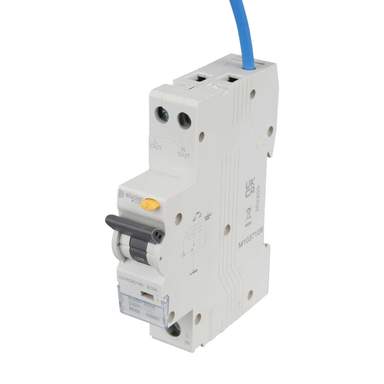

Scolmore Click Elucian 32A 1P+N 1 Module B Curve 6kA 30mA Type A RCBO
Part Code: CU1RCBO32B
Stock Code: 2682-9241
Scolmore Click Elucian 32A 1P+N 1 Module B Curve 6kA 30mA Type A RCBO
Part Code: CU1RCBO32B
Stock Code: 2682-9241
Delivery
36 In Stock
Free delivery on orders over £50
£5.95 Delivery on orders under £50
Features
- Thermal / Magnetic trip release
- Large terminal capacity
- 450mm fly lead
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Current Rating
- 32A
- Depth
- 76.6mm
- Dimensions
- (H)91.8 mm x (W)18 mm x (D)76.6 mm
- Guarantee
- 3 Years
- Height
- 91.8mm
- Incoming Terminal Capacity
- Flexible 25mm² Rigid 32mm²
- Mounting
- DIN Rail
- Number of Modules
- 1
- Number of Poles
- Single Pole and Neutral
- Outgoing Terminal Capacity
- Flexible 16mm² Rigid 25mm²
- Packaging Types
- Each
- Product Range
- Elucian
- Rcd Type
- A
- Short Circuit Rating
- 6kA
- Standards
- BS EN 61009-1
- Tripping Characteristics
- B Curve
- Tripping Sensitivity
- 30mA
- Unspsc V18
- 39121601
- Unspsc V24
- 39121601
- Voltage Rating
- 230V
- Weight
- 0.13241kg
- Width
- 18mm
