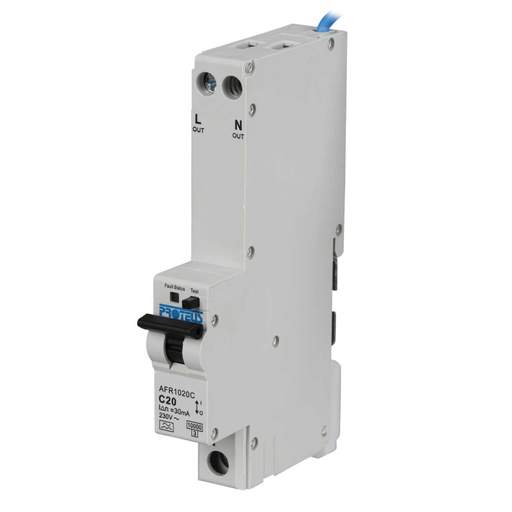

Proteus 20A Double Pole 1 Module Bidirectional C Curve 10kA 30mA Type A AFDD / RCBO
Part Code: AFR1020C
Stock Code: 2808-6910
Proteus 20A Double Pole 1 Module Bidirectional C Curve 10kA 30mA Type A AFDD / RCBO
Part Code: AFR1020C
Stock Code: 2808-6910
Delivery
Back in stock 1st May
Features
- Series and parallel arc fault detection
- Combined arc fault detection, short circuit and earth leakage detection
- 30mA earth leakage detection
- C curve tripping characteristics
- Durable thermoplastic moulding
- Fits existing busbar system
- Self testing
- Bidirectional
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Proteus
- Current Rating
- 20A
- Depth
- 66.8mm
- Dimensions
- (H)116 mm x (W)17.5 mm x (D)66.8 mm
- Guarantee
- 10 Years
- Height
- 116mm
- IP Rating
- IP2X
- Incoming Terminal Capacity
- 25mm²
- Material
- PBT Case
- Mounting
- DIN Rail
- Number of Modules
- 1
- Number of Poles
- 2 Pole
- Outgoing Terminal Capacity
- 10mm²
- Packaging Types
- Each
- Rcd Type
- A
- Short Circuit Rating
- 10kA
- Standards
- BS EN 62606
- Tripping Characteristics
- C Curve
- Tripping Sensitivity
- 30mA
- Unspsc V18
- 39121601
- Unspsc V24
- 39121601
- Voltage Rating
- 230V
- Weight
- 0.421kg
- Width
- 17.5mm
