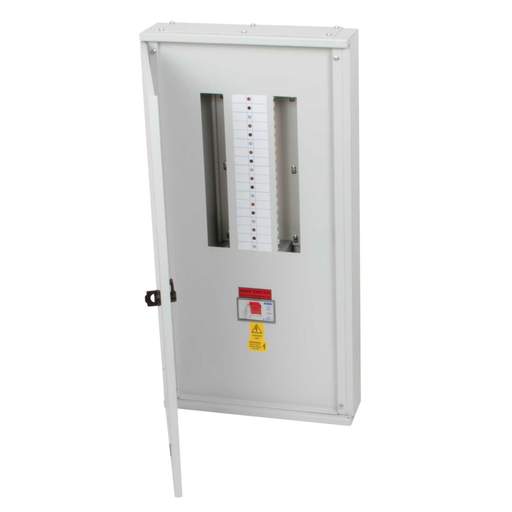

Proteus 12 Way TP+N Type B Distribution Board with 200A Isolator Incomer

Part Code: BX12S2

Stock Code: 0013-9174

Proteus 12 Way TP+N Type B Distribution Board with 200A Isolator Incomer

Part Code: BX12S2

Stock Code: 0013-9174

Delivery

3 In Stock

Free delivery on orders over £50

£5.95 Delivery on orders under £50

Features

  • TP+N distribution board
  • Complete with 200A triple pole incomer
  • Top and bottom removable glandplates for ease of cutting

Downloads

Specifications

All images and text, © Copyright City Electrical Factors Ltd
All images and text, © Copyright City Electrical Factors Ltd
Busbar Rating
200A
Colour
Grey
Current Rating
200A
Depth
110mm
Dimensions
(H)810 mm x (W)410 mm x (D)110 mm
Door Type
Metal
Finish
Epoxy Powder Coated Paint
Guarantee
1 Year
Height
810mm
IP Rating
IP31
Incoming Device
200A TP Isolator
Incoming Terminal Capacity
70mm²
Lockable
Yes
Material
Full Cold Rolled Steel enclosure for Maximum Robustness
Mounting
Wall
Number of Outgoing Ways
12
Packaging Types
Each
Product Range
BX 3 Phase Boards
Standards
BS EN 61439-1&3
Supplied With
200A TP Switch Disconnector
Unspsc V18
39121110
Voltage Rating
400V
Weight
14kg
Width
410mm
