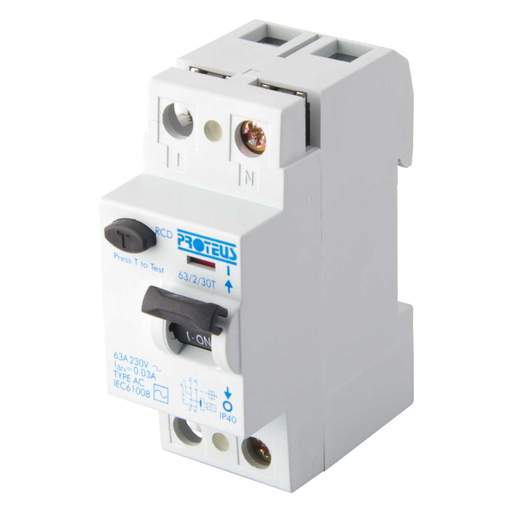

Proteus 63A 2 Pole 30mA Type AC RCD
Part Code: 63/2/30T
Stock Code: 0013-9003
Proteus 63A 2 Pole 30mA Type AC RCD
Part Code: 63/2/30T
Stock Code: 0013-9003
Features
- Isolator duty combined with RCD protection
- Positive contact indication
- Electromagnetic compatibility
- Locking facility in open position
- IP40
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Proteus
- Colour
- Grey
- Current Rating
- 63A
- Depth
- 66.3mm
- Dimensions
- (H)85 mm x (W)35 mm x (D)66.3 mm
- Guarantee
- 1 Year
- Height
- 85mm
- Incoming Terminal Capacity
- 50 mm²
- Material
- Polyamide (Nylon) case
- Mounting
- DIN Rail
- Number of Modules
- 2
- Number of Poles
- 2 Pole
- Outgoing Terminal Capacity
- 50mm²
- Packaging Types
- Each
- Product Range
- Residual Current Devices
- Rcd Type
- AC
- Short Circuit Rating
- 6kA
- Standards
- BS EN 61008
- Torque Settings
- 2 -2.5Nm
- Tripping Sensitivity
- 30mA
- Unspsc V18
- 39121614
- Unspsc V24
- 39121614
- Voltage Rating
- 230V
- Weight
- 0.20300kg
- Width
- 35mm
