F4P 10mm 4 Core SWA Jointing Kit

Part Code: MJ10ARM4C10

Stock Code: 0410-1850

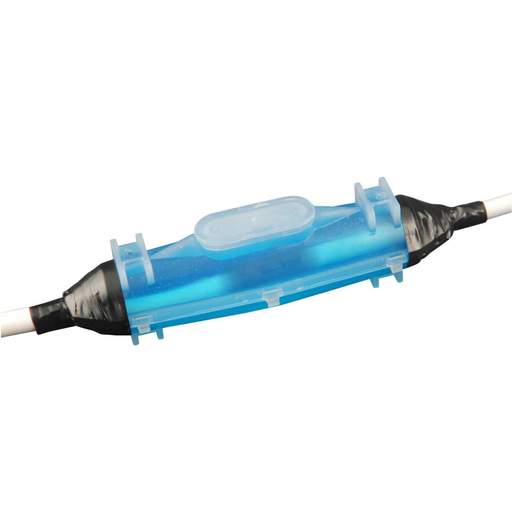

F4P 10mm 4 Core SWA Jointing Kit

Part Code: MJ10ARM4C10

Stock Code: 0410-1850

Delivery

11 In Stock

Free delivery on orders over £50

£5.95 Delivery on orders under £50

Features

  • For extruded cables F(R)G7OR 0.6/1kV
  • Easy installation, composed of two anti-fracture plastic shells, to be filled with non-toxic quick cross linking bi-component insulation
  • Suitable for installation in traps, channels or directly underground or underwater
  • Joints are able to absorb external shock without cracking or fracturing
  • The extreme stickiness of the insulation, together with its softness allow it to transmit water pressure for installation at high depths
  • Joints are completely non-toxic, safe, re-enterable even after long periods
  • Quick cross linking gel (only 10 minutes at 23°C)
  • Extremely adherent and tight sealing
  • No shelf life

Downloads

Specifications

All images and text, © Copyright City Electrical Factors Ltd
All images and text, © Copyright City Electrical Factors Ltd
Brand
F4P
Cable Size
10mm²
Cable Size Range
1.5 - 10mm²
Colour
Transparent
Diameter
50mm
Dimensions
(L)180 mm x (Dia)50 mm
Guarantee
1 Year
IP Rating
IP68
Kit Contents
Plastic Shell; Bi-Component Magic Gel; Earth Bonding Kit; Mechanical Connectors; Sealing Tape
Length
180mm
Material
Plastic/Bi-Component Gel
Operating Temperature
90°C
Packaging Types
Kit
Product Range
Magic Joint
Standards
CEI EN 50393, CEI 20-33, CEI 64-8 Class 2
Suitable For
Extruded Cables 0.6/1kV up to 4 Core 10mm²
Unspsc V18
39121452
Voltage Rating
1000V
Weight
0.469kg
