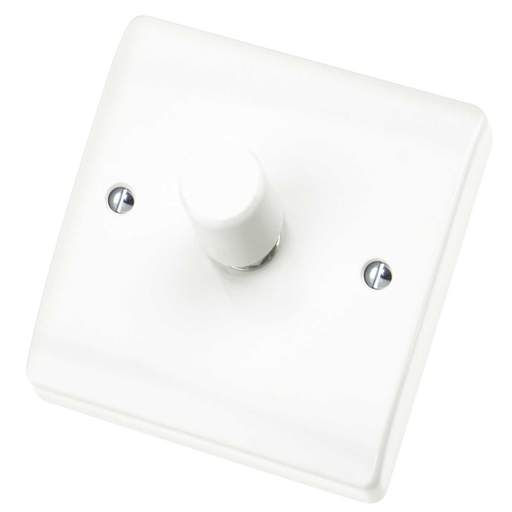

Scolmore Click Curva 250W 1 Gang 2 Way Resistive Inductive Dimmer Switch White
Part Code: CCA141
Stock Code: 0413-9311
Scolmore Click Curva 250W 1 Gang 2 Way Resistive Inductive Dimmer Switch White
Part Code: CCA141
Stock Code: 0413-9311
Features
- Curva profile
- 1 gang 2 way dimmer switch
- Resistive / inductive
- White moulded
- Fits a 25mm back box
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- White
- Compliance
- CE, RoHS
- Depth
- 9.5mm
- Dimensions
- (H)86 mm x (W)86 mm x (D)9.5 mm
- Fixing Centres
- 60.3mm
- Guarantee
- 10 Years
- Height
- 86mm
- Mounting
- Wall
- Mounting Depth
- 25mm
- Number of Gangs
- 1
- Number of Ways
- 2
- Operation Type
- Push On
- Packaging Types
- Each
- Product Range
- Curva
- Standards
- BS EN 60669, BS EN 55015
- Terminal Capacity Earth
- 2 x 1.5mm²
- Terminal Capacity Live Neutral
- 2 x 1.5mm²
- Type
- Dimmer Switch
- Unspsc V18
- 39122206
- Unspsc V24
- 39122206
- Voltage Rating
- 230V
- Weight
- 0.09218kg
- Width
- 86mm
