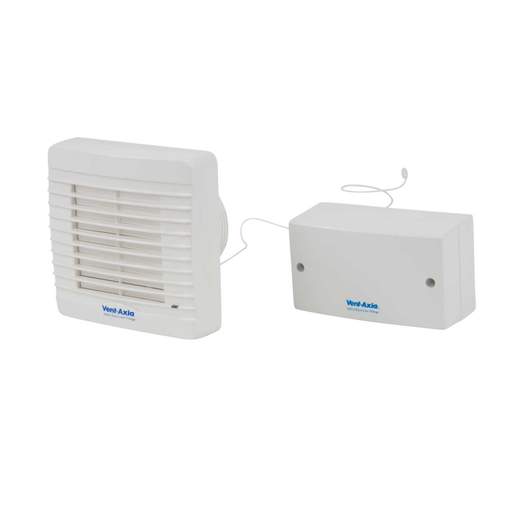

Vent Axia VA100SVXP 100mm 4" LV Bathroom Auto Shutter Fan with Pullcord
Part Code: 258310BD025
Stock Code: 0467-4358
Vent Axia VA100SVXP 100mm 4" LV Bathroom Auto Shutter Fan with Pullcord
Part Code: 258310BD025
Stock Code: 0467-4358
Features
- IPX7 rated fan with thermo-electric shutter and indication light, complete with remote wall mounted transformer. Boost via pullcord
- The VA100 SELV12 range is a 100mm axial extract fan which can be safely installed over or within reach of a bath or shower in bathrooms and WC's
- The VA100 SELV12 range meets the Building Regulation requirements of 15 l/s for bathrooms and WC's
- Designed for areas where a fan has to be fitted over or within zone 1 in a room containing a fixed bath or shower according to IEE wiring regulations (BS 7671), the VA100 SELV fan can be safely installed within the spray area
- Control is by mains safety isolating IP44 transformer unit with SELV output, which is sited away from any source of spray and out of reach of a person using a fixed bath or shower
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Airflow Cubic Metresper Hour
- 83 m³/h
- Airflow Litresper Second
- 23 l/s
- Colour
- White
- Decibel Rating
- 36 dB[A] @ 3 m
- Depth
- 48mm
- Dimensions
- (H)155 mm x (W)155 mm x (D)48 mm
- Ducting Size
- 100mm
- Guarantee
- 2 Years
- Height
- 155mm
- Hole Size
- 105mm
- Humidistat
- No
- IP Rating
- IPX7
- Mounting
- Wall / Ceiling / Panel / Window
- Operation Type
- Pullcord Auto Shutter
- Packaging Types
- Each
- Power Rating
- 18W
- Product Range
- Bathroom/Toilet Fans
- Standards
- BS 7671
- Supplied With
- Transformer
- Unspsc V18
- 40101502
- Unspsc V24
- 40101502
- Voltage Rating
- 12V
- Weight
- 1.60000kg
- Width
- 155mm
- Zone Rating
- Zone 1
