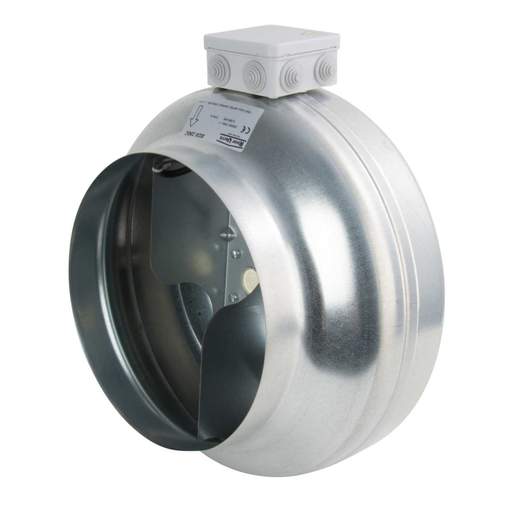

Vent Axia 250mm 9" In-Line Centrifugal Duct Fan
Part Code: SDX250
Stock Code: 0468-2617
Vent Axia 250mm 9" In-Line Centrifugal Duct Fan
Part Code: SDX250
Stock Code: 0468-2617
Features
- Motor Insulation Class B protected to IP44
- Operating Temperatures from -15°C up to 40°C
- HOT SPOT Protection
- Suitable for speed control using electronic or Voltage controller
- Quality Assurance to BS EN ISO 9001:1994
- Performance tested to BS848 Part 1 1980
- 2 Year Warranty
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Airflow Cubic Metresper Hour
- 815 m³/h
- Airflow Litresper Second
- 226 l/s
- Colour
- Silver
- Decibel Rating
- 31 dB[A] @ 3 m
- Dimensions
- (H)430 mm x (W)380 mm
- Ducting Size
- 250mm
- Guarantee
- 2 Years
- Height
- 430mm
- IP Rating
- IP44
- Motor Type
- Insulation Class B
- Mounting
- In-Duct
- Neon
- No
- Operating Temperature
- 40°C
- Operation Type
- Remote Switching
- Packaging Types
- Each
- Power Rating
- 94W
- Previously Known As
- SDX250B
- Product Range
- Roof Units - Euroflow
- Size
- 250 mm
- Standards
- BS EN ISO 9001
- Supplied With
- An IP44 Terminal Box Shall Be Supplied with all Models with 20mm Entry
- Unspsc V18
- 40101502
- Unspsc V24
- 40101502
- Voltage Rating
- 230V
- Weight
- 4.90000kg
- Width
- 380mm
