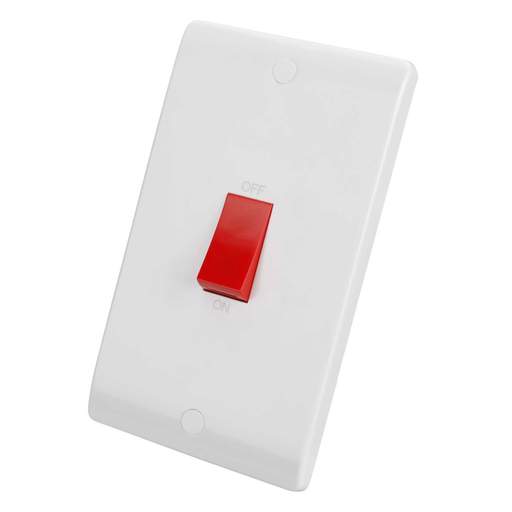

Scolmore Click Mode 45A DP 2 Gang Vertical Switch with Red Rocker White
Part Code: CMA202
Stock Code: 0509-7616
Scolmore Click Mode 45A DP 2 Gang Vertical Switch with Red Rocker White
Part Code: CMA202
Stock Code: 0509-7616
Delivery
27 In Stock
Free delivery on orders over £50
£5.95 Delivery on orders under £50
Features
- Mode profile
- 2 Gang Plate
- White moulded
- Red rockers
- Fits a 35mm back box
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- White
- Compliance
- RoHS
- Current Rating
- 45A
- Depth
- 9.5mm
- Dimensions
- (H)146 mm x (W)86 mm x (D)9.5 mm
- Fixing Centres
- 120.6mm
- Guarantee
- 25 Years
- Height
- 146mm
- Material
- Moulded
- Mounting
- Wall
- Mounting Depth
- 35mm
- Neon
- No
- Number of Gangs
- 1
- Number of Poles
- Double Pole
- Packaging Types
- Each
- Product Range
- Mode
- Standards
- BS 4177, BS EN 60669
- Switched Unswitched
- Switched
- Terminal Capacity Earth
- 1 x 16mm²
- Terminal Capacity Live Neutral
- 1 x 16mm²
- Unspsc V18
- 39122226
- Unspsc V24
- 39122226
- Voltage Rating
- 230V
- Weight
- 0.186kg
- Width
- 86mm
- With Socket
- No
