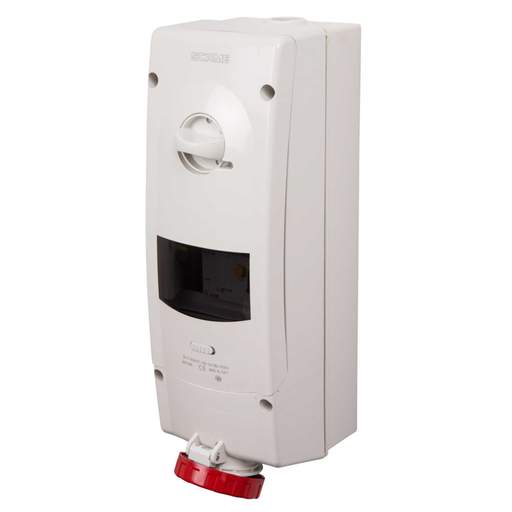

Scame ADVANCE 2 16A 3P+E 415V Interlocked Switched RCD Protected Socket IP67
Part Code: 568.1686-RW
Stock Code: 0520-6294
Scame ADVANCE 2 16A 3P+E 415V Interlocked Switched RCD Protected Socket IP67
Part Code: 568.1686-RW
Stock Code: 0520-6294
Delivery
2 In Stock
Free delivery on orders over £50
£5.95 Delivery on orders under £50
Features
- Advance 2 interlocked socket with screw terminals and 25A 30mA RCD
- Blank side with drilling side marks
- Cable gland included
- 6 module DIN rail
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Scame
- Colour
- Red
- Current Rating
- 16A
- Depth
- 176mm
- Dimensions
- (H)390 mm x (W)136 mm x (D)176 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 390mm
- IP Rating
- IP67
- Material
- Thermoplastic
- Mounting
- Wall
- Number of Poles
- 3P+E
- Packaging Types
- Each
- Product Range
- ADVANCE 2 Series
- Rcd Fitted
- Yes
- Standards
- EN 60309
- Terminal Type
- Screw
- Unspsc V18
- 39121406
- Voltage Rating
- 415V
- Weight
- 1.964kg
- Width
- 136mm
