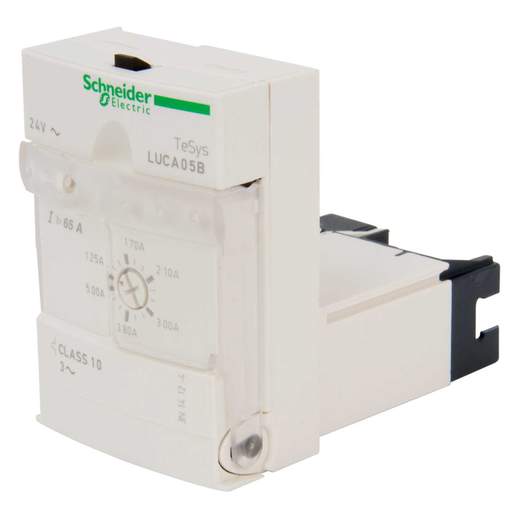

Schneider TeSys 1.25A to 5A 24V AC Standard Control Unit
Part Code: LUCA05B
Stock Code: 0522-5521
Schneider TeSys 1.25A to 5A 24V AC Standard Control Unit
Part Code: LUCA05B
Stock Code: 0522-5521
Features
- TeSys U range
- Basic protection requriements for motor starters: overload and short circuit
- Class 10 tripping with adjustable thermal protection range
- IEC EN 60947
- Compatible with LUFC00 and LUFN..
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Frequency
- 50/60 Hz
- Guarantee
- 18 Months
- Motor Power Ratingat415 V
- 1.5kW
- Overload Rating
- 1.25 - 5A
- Packaging Types
- Each
- Standards
- UL 508, IEC 60947, EN 60947
- Unspsc V18
- 39121521
- Unspsc V24
- 39121521
- Voltage Rating
- 24V AC
- Weight
- 0.10900kg
