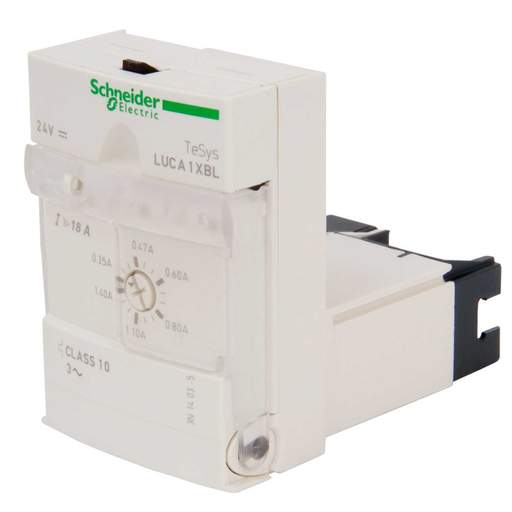

Schneider TeSys 0.35A to 1.4A 24V DC Standard Control Unit
Part Code: LUCA1XBL
Stock Code: 0522-5560
Schneider TeSys 0.35A to 1.4A 24V DC Standard Control Unit
Part Code: LUCA1XBL
Stock Code: 0522-5560
Features
- TeSys U range
- Basic protection requriements for motor starters: overload and short circuit
- Class 10 tripping with adjustable thermal protection range
- IEC EN 60947
- Compatible with ASILUFC5, ASILUFC51, LUFC00 and LUFN..
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Frequency
- 50/60 Hz
- Guarantee
- 18 Months
- Motor Power Ratingat415 V
- 0.25kW
- Mounting
- Plug in
- Overload Rating
- 0.35 - 1.4A
- Packaging Types
- Each
- Standards
- UL 508, IEC 60947, EN 60947
- Unspsc V18
- 39121521
- Unspsc V24
- 39121521
- Voltage Rating
- 24V DC
- Weight
- 0.11800kg
