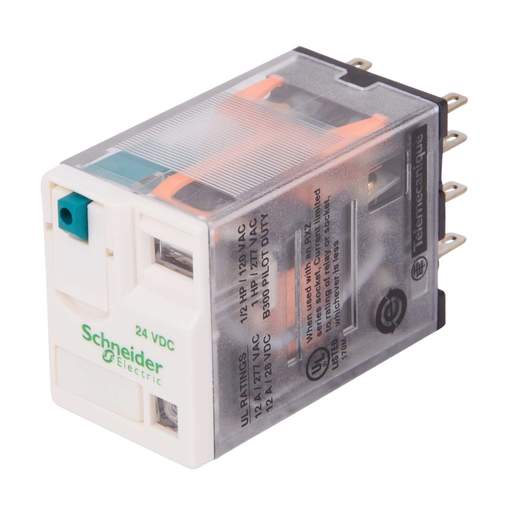

Schneider Harmony Relay 8 Pin 24V DC 12A Miniature Plug In Relay with LED
Part Code: RXM2AB2BD
Stock Code: 0522-7294
Schneider Harmony Relay 8 Pin 24V DC 12A Miniature Plug In Relay with LED
Part Code: RXM2AB2BD
Stock Code: 0522-7294
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Coil Voltage
- 24V DC
- Colour
- White
- Contact Configuration
- 2 CO
- Current Rating
- 12A
- Depth
- 55mm
- Dimensions
- (H)27 mm x (W)21 mm x (D)55 mm
- Guarantee
- 18 Months
- Height
- 27mm
- Led Indication
- Yes
- Number of Pins
- 8
- Packaging Types
- Each
- Product Range
- Zelio Relay
- Standards
- EN/IEC 61810, UL 508, CSA C22.2 No 14
- Unspsc V18
- 39122325
- Unspsc V24
- 39122325
- Voltage Rating
- 250V
- Weight
- 0.03700kg
- Width
- 21mm
