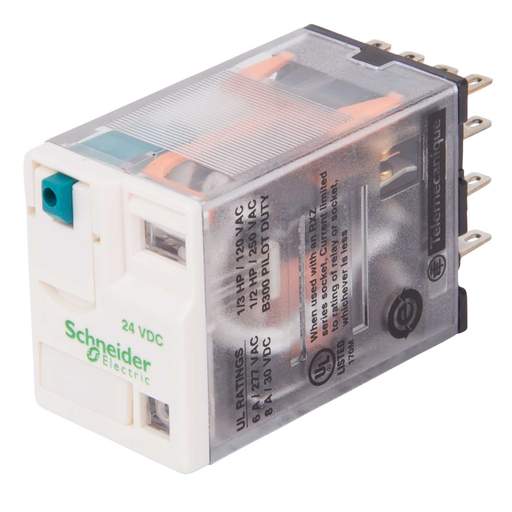

Schneider Harmony Relay 14 Pin 24V DC 6A Miniature Plug In Relay with LED
Part Code: RXM4AB2BD
Stock Code: 0522-7429
Schneider Harmony Relay 14 Pin 24V DC 6A Miniature Plug In Relay with LED
Part Code: RXM4AB2BD
Stock Code: 0522-7429
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Changeover
- Yes
- Coil Voltage
- 24V DC
- Contact Configuration
- 4 CO
- Current Rating
- 6A
- Depth
- 55mm
- Dimensions
- (H)27 mm x (W)21 mm x (D)55 mm
- Guarantee
- 18 Months
- Height
- 27mm
- Led Indication
- Yes
- Number of Pins
- 14
- Packaging Types
- Each
- Standards
- EN 61810, IEC 61810, UL 508, CSA C22.2 No 14
- Unspsc V18
- 39122325
- Unspsc V24
- 39122325
- Voltage Rating
- 250
- Weight
- 0.04000kg
- Width
- 21mm
