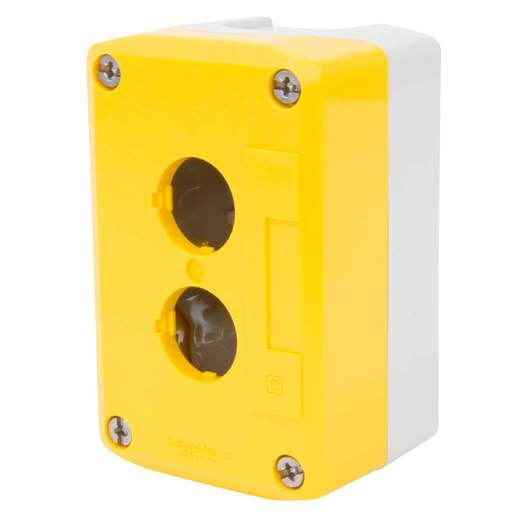

Schneider Harmony 2 Hole Plastic Empty Pushbutton Station Yellow / Grey IP65
Part Code: XALK02
Stock Code: 0522-9604
Schneider Harmony 2 Hole Plastic Empty Pushbutton Station Yellow / Grey IP65
Part Code: XALK02
Stock Code: 0522-9604
Features
- Surface mounted empty control station
- 2 cut outs - 22mm
- Applications: emergency stop function or emergency switching off function
- Harmony XALK range
- Polycarbonate enclosure
- Light grey RAL 7035 base
- Yellow RAL 1021 cover
- 2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity:
= 12mm - 2 knock-outs for cable entry, clamping capacity:
= 14mm
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Entry
- 2 x 12mm and 2 x 14mm
- Colour
- Yellow/Grey
- Cut Out
- 22mm
- Depth
- 53mm
- Dimensions
- (H)106 mm x (W)68 mm x (D)53 mm
- Guarantee
- 18 Months
- Height
- 106mm
- IP Rating
- IP66
- Material
- Polycarbonate
- Maximum Operating Temperature
- 70°C
- Minimum Operating Temperature
- -25°C
- Mounting
- Surface
- Number of Ways
- 2
- Packaging Types
- Each
- Product Range
- Harmony XALK
- Suitable For
- Emergency Stop or Switching Off Function
- Supplied With
- 2 Cut Outs
- Unspsc V18
- 39121326
- Unspsc V24
- 39121326
- Weight
- 0.18600kg
- Width
- 68mm
