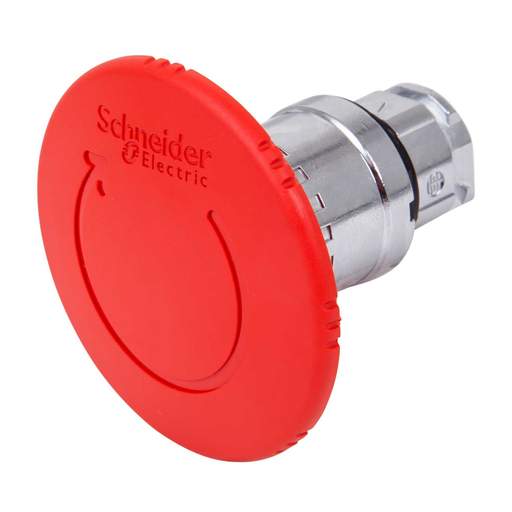

Schneider Harmony 60mm Emergency Stop Mushroom Head Twist Release Pushbutton Red
Part Code: ZB4BS864
Stock Code: 0523-5904
Schneider Harmony 60mm Emergency Stop Mushroom Head Twist Release Pushbutton Red
Part Code: ZB4BS864
Stock Code: 0523-5904
Features
- Chromium plated metal bezel
- Trigger action and mechanical latching
- Mushroom Head 60mm Diameter
- IP66
- Mounting diameter 22mm
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Red
- Cut Out
- 22mm
- Depth
- 57mm
- Diameter
- 60mm
- Dimensions
- (Dia)60 mm x (H)60 mm x (W)60 mm x (D)57 mm
- Guarantee
- 18 Months
- Height
- 60mm
- IP Rating
- IP66
- Maximum Operating Temperature
- 70°C
- Minimum Operating Temperature
- -25°C
- Mounting
- Panel
- Operation Type
- Trigger and Latching Twist Release
- Packaging Types
- Each
- Product Range
- Pushbutton Heads
- Standards
- CSA C22-2, EN IEC 60204, EN IEC 60947, EN ISO 13850, JIS C 4520, UL 508
- Unspsc V18
- 39122216
- Unspsc V24
- 39122216
- Weight
- 0.08900kg
- Width
- 60mm
