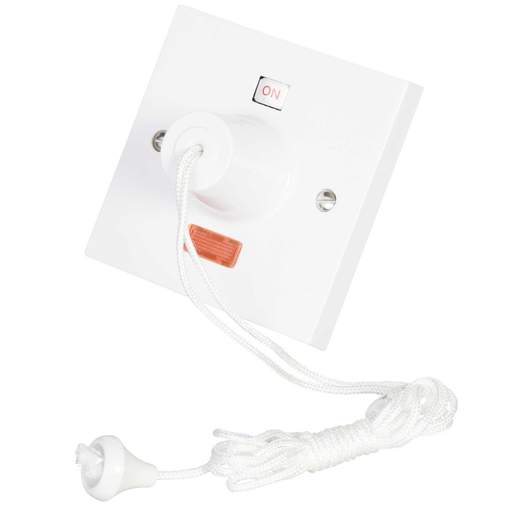

Scolmore Click Polar 45A DP Ceiling Pull Cord Switch with Neon White
Part Code: PRW210
Stock Code: 0545-5015
Scolmore Click Polar 45A DP Ceiling Pull Cord Switch with Neon White
Part Code: PRW210
Stock Code: 0545-5015
Features
- Double pole
- Mechanical On/Off indicator
- Conforms to BS EN 60669
- Cable size: 3 x 2.5mm² / 1.6mm²
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- White
- Compliance
- RoHS
- Current Rating
- 45A
- Dimensions
- (H)86 mm x (W)86 mm
- Fixing Centres
- 60.3mm
- Guarantee
- 25 Years
- Height
- 86mm
- Mounting
- Ceiling
- Mounting Depth
- 47mm
- Neon
- Yes
- Number of Poles
- Double Pole
- Packaging Types
- Each
- Product Range
- Polar
- Standards
- BS EN 60669
- Terminal Capacity Live Neutral
- 3 x 2.5mm² / 1 x 6mm²
- Unspsc V18
- 39122239
- Unspsc V24
- 39122239
- Voltage Rating
- 230V
- Weight
- 0.10539kg
- Width
- 86mm
