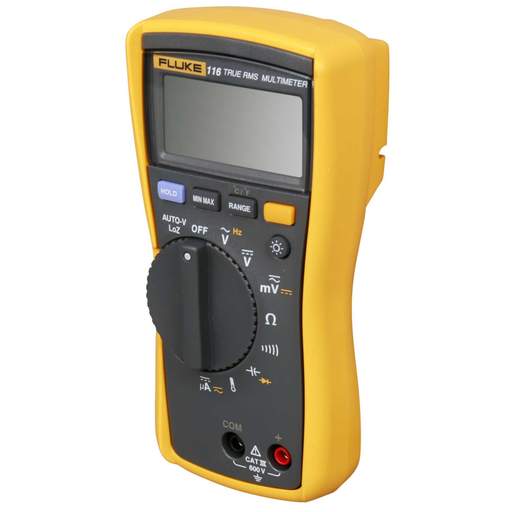

Fluke 116 TRMS HV AC Auto Ranging Digital Multimeter
Part Code: FLUKE 116
Stock Code: 0546-4006
Fluke 116 TRMS HV AC Auto Ranging Digital Multimeter
Part Code: FLUKE 116
Stock Code: 0546-4006
Features
- True RMS digital multimeter
- AC/DC voltage measurement ranges 600mV - 600V auto ranging
- AC/DC current measurement range up to 600μA
- Resistance measurement ranges 600Ω - 40MΩ auto ranging
- Built-in thermometer for HVAC applications
- Frequency, capacitance and diode test ranges
- Low input impedance to prevent ghost voltage
- Min / max / average to record signal fluctuations
- Analogue bargraph
- Integral protective rubber boot with probe holders for easy storage
- Large backlit display allows for easy visibility in low-lit areas
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Ac Current Measurement
- 600μA
- Ac Voltage Measurement
- 600V AC
- Auto Ranging
- Yes
- Battery Life
- 400h
- Battery Size
- PP3
- Battery Type
- Alkaline
- Capacitance Measurement
- 1000µF
- Continuity Check
- Yes
- Dc Current Measurement
- 600μA
- Dc Voltage Measurement
- 600V DC
- Depth
- 46mm
- Dimensions
- (H)167 mm x (W)84 mm x (D)46 mm
- Display Count
- 6000
- Display Type
- LCD
- Frequency Measurement
- 50.00 kHz
- Fused
- Yes
- Guarantee
- 3 Years
- Height
- 167mm
- IP Rating
- IP54
- Number of Batteries
- 1
- Packaging Types
- Each
- Product Range
- 110 Series Digital Multimeters
- Safety Range
- CAT III 600V
- Standards
- IEC 61010-1
- Supplied With
- Test Lead Set, 80BK Temperature Probe, Holster, Installed 9V Battery and User Manual
- Type
- True RMS Multimeter
- Unspsc V18
- 41113630
- Unspsc V24
- 41113630
- Video Url
- https://www.youtube.com/embed/o4duL8tL9xk
- Weight
- 0.55000kg
- Width
- 84mm
