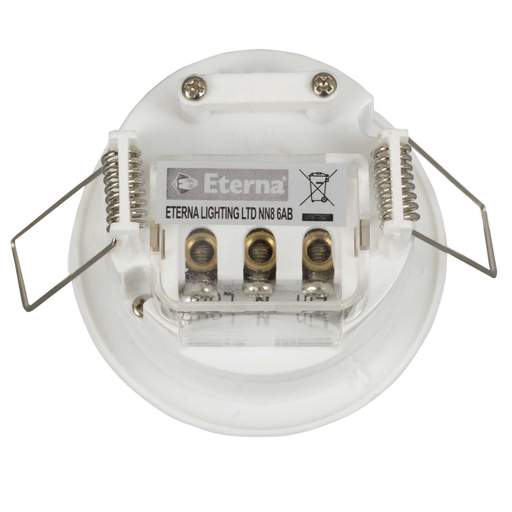

Eterna 360° Recessed Flush Mounted PIR Detector White
Part Code: PIRFM360
Stock Code: 0628-2733
Eterna 360° Recessed Flush Mounted PIR Detector White
Part Code: PIRFM360
Stock Code: 0628-2733
Features
- 4.5m detection range
- 360° detection angle
- Adjustable lux level
- Time on adjustable 10 secs to 15 mins
- Polycarbonate construction
- Max 2000W incandescent ,500W fluorescent and 250W LED load capacity
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Eterna
- Class Type
- Class 2
- Colour
- White
- Cut Out
- 63mm
- Depth
- 73mm
- Detection Angle
- 360°
- Detection Range
- 4.5m
- Diameter
- 76mm
- Dimensions
- (Dia)76 mm x (D)73 mm
- Guarantee
- 1 Year
- IP Rating
- IPX4
- Lux Adjustment
- Yes
- Maximum Switching Load
- Incandescent - 2000W, Mains halogen - 500W, LV halogen - 500W, Fluorescent [uncompensated] - 500W, LED - 250W, Energy saving - 250W
- Mounting
- Ceiling / Surface
- Packaging Types
- Each
- Sensor
- PIR
- Unspsc V18
- 39122236
- Unspsc V24
- 39122236
- Weight
- 0.18500kg
