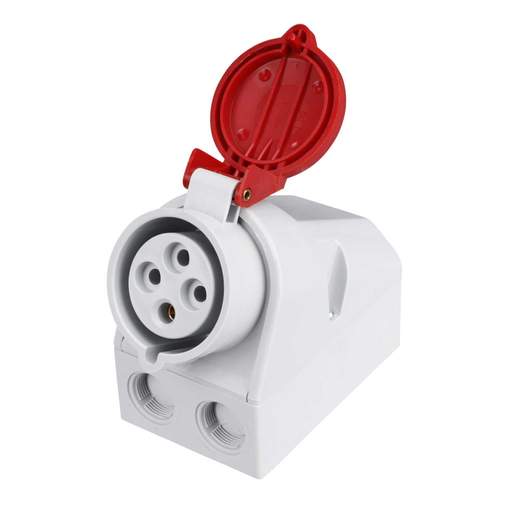

Ceenorm 32A 3P+E 415V Wall Mounted Socket IP44
Part Code: 11314
Stock Code: 0100-0414
Ceenorm 32A 3P+E 415V Wall Mounted Socket IP44
Part Code: 11314
Stock Code: 0100-0414
Features
- Screw terminals
- M25 top and 2 x M25 bottom entry
- Brass contacts with a maximum conductor size of 10mm²
- Heat-resistant contact carrier
- Lower part of housing is rotatable by 180°
- Polyamide enclosure
- IP44 splashproof
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Entry
- M20 Top Entry and M20 Bottom Entry
- Colour
- Red
- Compliance
- CE
- Current Rating
- 32A
- Depth
- 130mm
- Dimensions
- (H)155 mm x (W)83 mm x (D)130 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 155mm
- IP Rating
- IP44
- Material
- Polyamide / Brass
- Mounting
- Wall
- Number of Poles
- 3P+E
- Packaging Types
- Each
- Standards
- IEC 60309-1, IEC 60309-2
- Terminal Type
- Screw
- Unspsc V18
- 39121406
- Unspsc V24
- 39121406
- Voltage Rating
- 415V
- Weight
- 0.27700kg
- Width
- 83mm
