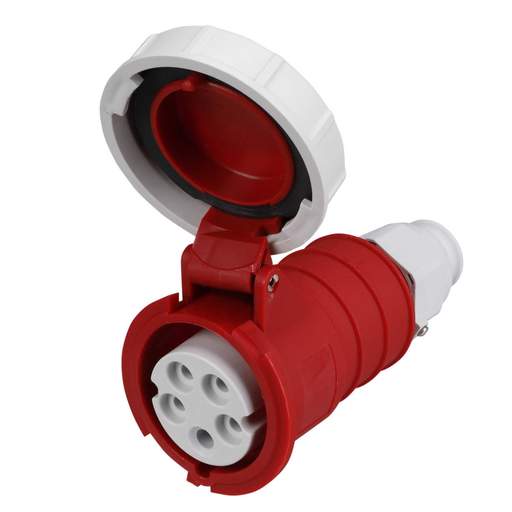

Ceenorm Quick Connect 16A 3P+N+E 415V Coupler IP67
Part Code: 31243
Stock Code: 0041-1244
Ceenorm Quick Connect 16A 3P+N+E 415V Coupler IP67
Part Code: 31243
Stock Code: 0041-1244
Features
- Quick connect screwless terminals
- Multi-Grip cable gland with gasket and strain relief
- Brass nickel plated contacts with a maximum conductor size of 2.5mm²
- IP67 watertight
- Manufactured from polyamide
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Entry
- Gland
- Colour
- Red
- Compliance
- CE
- Current Rating
- 16A
- Dimensions
- (L)168 mm x (H)92 mm x (W)87 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 92mm
- IP Rating
- IP67
- Length
- 168mm
- Material
- Polyamide / Brass
- Mounting
- Trailing
- Number of Poles
- 3P N E
- Packaging Types
- Each
- Product Range
- Quick Connect
- Standards
- IEC 60309-1, IEC 60309-2
- Terminal Type
- Spring
- Unspsc V18
- 39121406
- Unspsc V24
- 39121406
- Voltage Rating
- 415V
- Weight
- 0.24500kg
- Width
- 87mm
