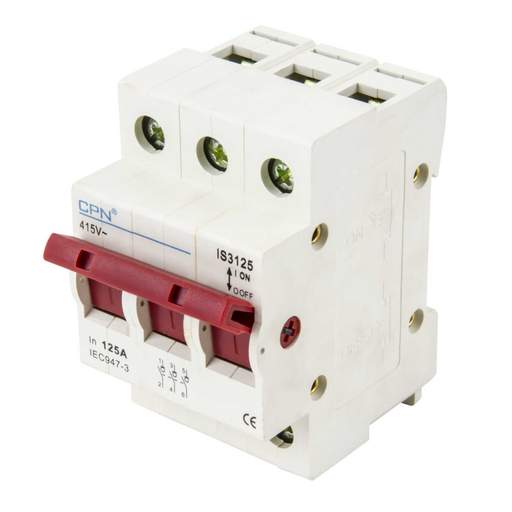

Cudis 125A 3 Pole Isolator Incomer
Part Code: IS3125
Stock Code: 0639-2311
Cudis 125A 3 Pole Isolator Incomer
Part Code: IS3125
Stock Code: 0639-2311
Features
- Manufactured to the highest standards at ISO accredited facilities to our design and specification
- Designed for use in the Cudis range of domestic consumer units, enclosures and 3-Phase boards
- Satisfies most requirements in domestic, commercial and industrial applications
- Capable of switching electrical circuits with load
- 35mm² connection capacity
- Pillar connection terminal with clamp
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Cudis
- Current Rating
- 125A
- Depth
- 77mm
- Dimensions
- (H)82 mm x (W)54 mm x (D)77 mm
- Guarantee
- 1 Year
- Height
- 82mm
- Incoming Terminal Capacity
- 35mm²
- Mounting
- DIN Rail
- Number of Modules
- 3
- Number of Poles
- Triple Pole
- Packaging Types
- Each
- Unspsc V18
- 39121108
- Unspsc V24
- 39121108
- Voltage Rating
- 230V 400V
- Weight
- 0.32500kg
- Width
- 54mm
