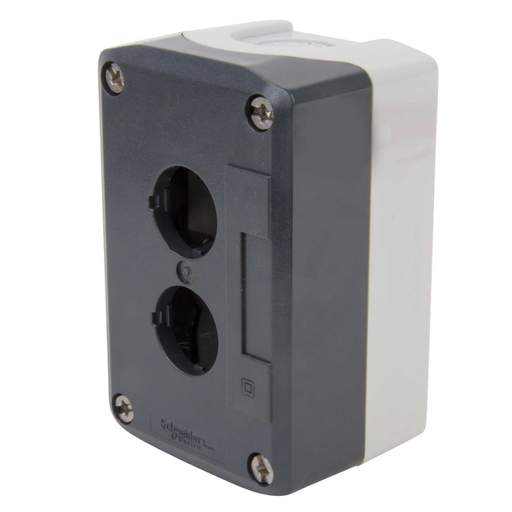

Schneider Harmony 2 Hole Plastic Empty Pushbutton Station Grey IP66
Part Code: XALD02
Stock Code: 0041-7025
Schneider Harmony 2 Hole Plastic Empty Pushbutton Station Grey IP66
Part Code: XALD02
Stock Code: 0041-7025
Features
- 4 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity:
= 12 mm - 1 knock-out for cable entry, clamping capacity:
= 14 mm - 1 flush push-button green 1 NO I marking
- Colour of base of enclosure light grey RAL 7035
- Colour of cover dark grey RALL 7016
- For XB5 Ø 22 mm control and signalling units
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Entry
- 2 x 12 mm and 2 x 14 mm
- Colour
- Light Grey RAL7035
- Depth
- 53mm
- Dimensions
- (H)106 mm x (W)68 mm x (D)53 mm
- Guarantee
- 18 Months
- Height
- 106mm
- IP Rating
- IP66
- Material
- Polycarbonate
- Number of Ways
- 2
- Packaging Types
- Each
- Standards
- EN 60947, IEC 60947, JIS C 4520, UL 508, CSA C22.2 No 14
- Unspsc V18
- 39121326
- Unspsc V24
- 39121326
- Weight
- 0.18500kg
- Width
- 68mm
