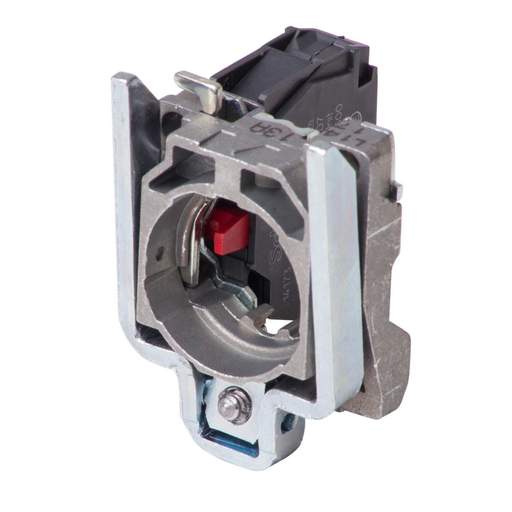

Schneider Harmony Single Contact Block with Body Fixing Collar 1 NC
Part Code: ZB4BZ102
Stock Code: 0041-7898
Schneider Harmony Single Contact Block with Body Fixing Collar 1 NC
Part Code: ZB4BZ102
Stock Code: 0041-7898
Features
- Part of Harmony XB4 range
- Complete body/contact assembly with collar
- Single contact block type
- 1 NC contact
- Slow-break operation
- Screw clamp terminals:
=1 x 0.22mm² without cable and conforming to EN 60947-1 - Screw clamp terminals
=2 x 1.5mm² with cable end conforming to EN 60947-1 - With positive opening conforming to EN/IEC 60947-5-1 appendix K
- Contacts material : silver alloy
- Fixing collar material : Zamak
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Black
- Connection Type
- Screw Clamp
- Contact Configuration
- 1 NC
- Depth
- 37mm
- Dimensions
- (H)47 mm x (W)30 mm x (D)37 mm
- Guarantee
- 18 Months
- Height
- 47mm
- IP Rating
- IP20
- Packaging Types
- Each
- Product Range
- Harmony XB4
- Standards
- EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5
- Unspsc V18
- 39122221
- Unspsc V24
- 39122221
- Weight
- 0.05200kg
- Width
- 30mm
