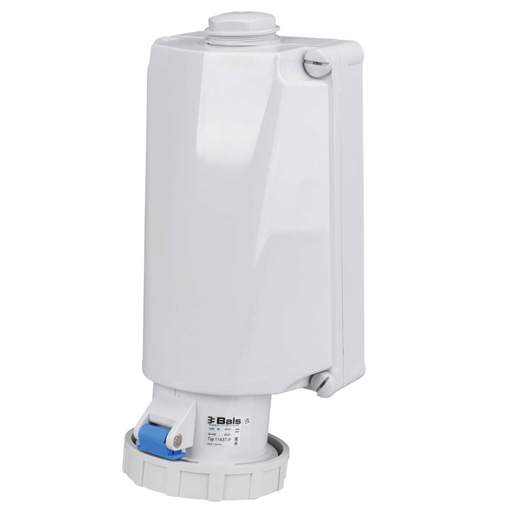

Ceenorm 125A 2P+E 230V Wall Mounted Socket IP67
Part Code: 11437
Stock Code: 0663-8905
Ceenorm 125A 2P+E 230V Wall Mounted Socket IP67
Part Code: 11437
Stock Code: 0663-8905
Features
- Surface socket with screw terminals
- M50 top entry
- Brass contacts with a maximum conductor size of 70mm²
- Polycarbonate enclosure
- IP67 watertight
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Entry
- M50 Top Entry
- Colour
- Blue
- Compliance
- CE
- Current Rating
- 125A
- Depth
- 168mm
- Dimensions
- (H)330 mm x (W)160 mm x (D)168 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 330mm
- IP Rating
- IP67
- Material
- Polycarbonate
- Mounting
- Wall
- Number of Poles
- 2P E
- Packaging Types
- Each
- Standards
- IEC 60309-1, IEC 60309-2
- Terminal Type
- Screw
- Unspsc V18
- 39121406
- Unspsc V24
- 39121406
- Voltage Rating
- 230V
- Weight
- 1.58500kg
- Width
- 160mm
