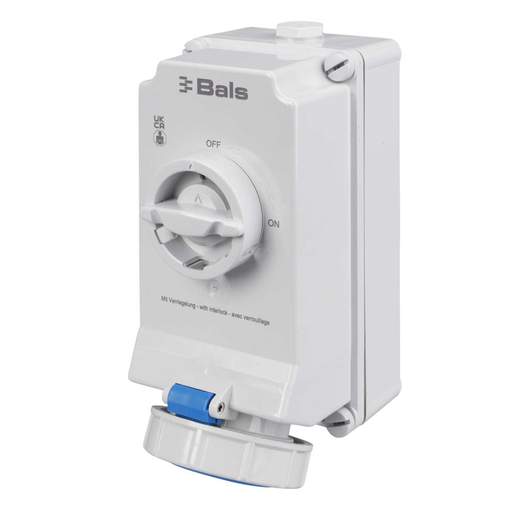

Ceenorm Quick Connect 32A 2P+E 230V Interlocked Socket IP67
Part Code: 16194
Stock Code: 0663-9247
Ceenorm Quick Connect 32A 2P+E 230V Interlocked Socket IP67
Part Code: 16194
Stock Code: 0663-9247
Features
- Interlocked socket with quick connect screwless terminals
- M25 top entry and 2 x M25 bottom entry
- The contact carrier is made of high temperature resistant material
- Brass nickel plated contacts with a maximum conductor size of 10mm²
- In 0-position lockable for 3 padlocks with a bow diameter up to 7mm
- Polycarbonate enclosure
- IP67 watertight
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Cable Entry
- M25 Top Entry and 2 x M25 Bottom Entry
- Colour
- Blue
- Compliance
- CE
- Current Rating
- 32A
- Depth
- 137mm
- Dimensions
- (H)225 mm x (W)118 mm x (D)137 mm
- Frequency
- 50/60 Hz
- Guarantee
- 1 Year
- Height
- 225mm
- IP Rating
- IP67
- Material
- Polycarbonate
- Mounting
- Wall
- Number of Poles
- 2P E
- Packaging Types
- Each
- Product Range
- Quick Connect
- Standards
- IEC 60309-1, IEC 60309-2
- Terminal Type
- Spring
- Unspsc V18
- 39121406
- Unspsc V24
- 39121406
- Voltage Rating
- 230V
- Weight
- 1.03500kg
- Width
- 118mm
