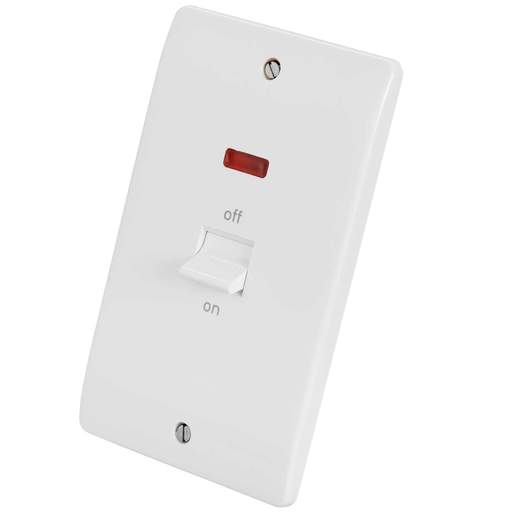

MK Logic Plus 50A DP 2 Gang Vertical Switch with Neon White
Part Code: K5215WHI
Stock Code: 0042-6775
MK Logic Plus 50A DP 2 Gang Vertical Switch with Neon White
Part Code: K5215WHI
Stock Code: 0042-6775
Features
- Supplied with 8 self-adhesive plastic identification labels individually marked
- Marked hob, fan, oven, waterheater, shower, air conditioner, cooker and washing machine
- Not recommended for switching large banks of pcs
- Part of Logic Plus range
- Single Gang
- Double Pole
- 50A
- With neon
- Flush mounting
- Operating temperature : -5°C to +40°C
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- White
- Current Rating
- 50A
- Dimensions
- (H)146 mm x (W)86 mm
- Fixing Centres
- 120.6mm
- Guarantee
- 30 Years
- Height
- 146mm
- Material
- Blend of Urea Formaldehyde and Melamine
- Mounting
- Wall
- Neon
- Yes
- Number of Gangs
- 1
- Number of Poles
- Double Pole
- Packaging Types
- Each
- Previously Known As
- K5215 WHI
- Product Range
- Logic Plus
- Standards
- BS 3676
- Switched Unswitched
- Switched
- Type
- 45A 1 Gang Double Pole Switch with Neon
- Unspsc V18
- 39122226
- Unspsc V24
- 39122226
- Voltage Rating
- 230V
- Weight
- 0.24000kg
- Width
- 86mm
- With Socket
- No
