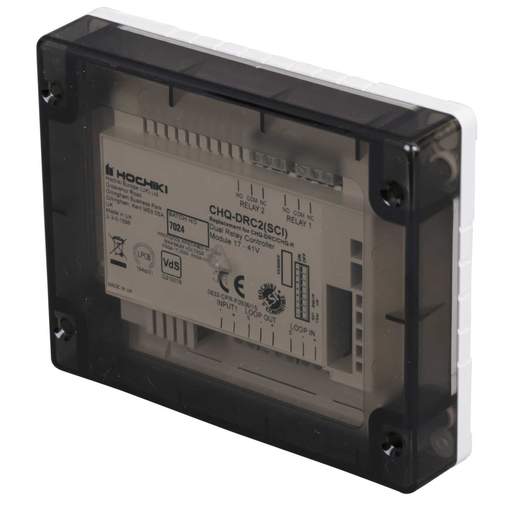

Hochiki CHQ-DRC-SCI Dual Relay Controller with Isolator
Part Code: FDHRCI
Stock Code: 0672-6046
Hochiki CHQ-DRC-SCI Dual Relay Controller with Isolator
Part Code: FDHRCI
Stock Code: 0672-6046
Features
- Dual relay controller provides two general purpose relay outputs, each output can be driven separately for control of such devices as dampers or for control of plant and equipment shut down
- The monitored input can be used for local power supply fault monitoring or as a general purpose input
- Loop powered
- Single loop address
- 2 independently controlled changeover relays
- Relays contact rated at 30V DC @ 1A
- Auxiliary monitored input
- Integral short circuit isolator
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Hochiki
- Depth
- 79mm
- Dimensions
- (L)157 mm x (W)127 mm x (D)79 mm
- Guarantee
- 3 Years
- Humidity Range
- Up to 95% RH @ 40°C (Non Condensing)
- Length
- 157mm
- Packaging Types
- Each
- Storage Temperature Range
- -30 - 60°C
- Unspsc V18
- 46191505
- Unspsc V24
- 46191505
- Weight
- 0.34300kg
- Width
- 127mm
