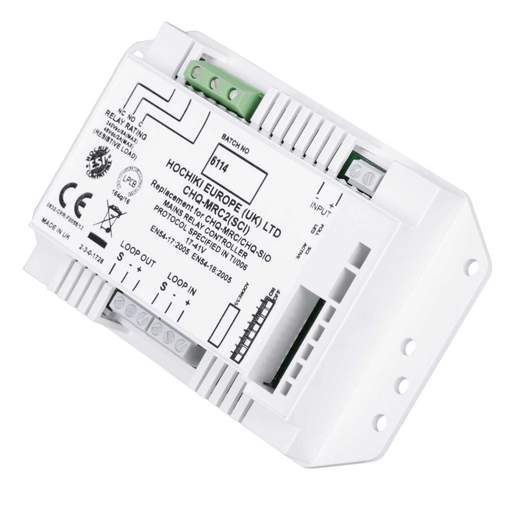

Hochiki CHQ-MRC-SCI Mains Relay Controller with Isolator
Part Code: FDHRCMI
Stock Code: 0672-6049
Hochiki CHQ-MRC-SCI Mains Relay Controller with Isolator
Part Code: FDHRCMI
Stock Code: 0672-6049
Features
- Single input/output module, which provides a single, mains rated relay output for the control of such devices as dampers, extractors or plant and equipment shut down
- The monitored input can be used for local power supply fault monitoring or a general purpose input
- Loop-powered
- Single loop address
- Single mains rated relay contact
- Relay contact rated at 250V AC @ 5A [resistive load only] and 48V DC @ 2A [resistive load only]
- Auxiliary monitored input
- Integral short circuit isolator
- Optional CHQ-BACKBOX (FDHSB) available
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Hochiki
- Depth
- 35mm
- Dimensions
- (L)157 mm x (W)127 mm x (D)35 mm
- Humidity Range
- Up to 95% RH @ 40°C (Non Condensing)
- Length
- 157mm
- Operating Voltage Range
- 17-41V
- Packaging Types
- Each
- Storage Temperature Range
- -30 - 60°C
- Unspsc V18
- 46191505
- Unspsc V24
- 46191505
- Weight
- 0.32800kg
- Width
- 127mm
