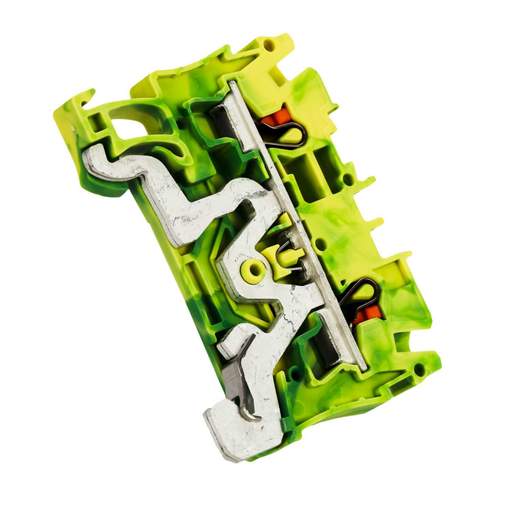

Wago 4mm Standard DIN Rail Terminal Green / Yellow
Part Code: 2004-1207
Stock Code: 0701-8795
Wago 4mm Standard DIN Rail Terminal Green / Yellow
Part Code: 2004-1207
Stock Code: 0701-8795
Features
- 2 conductor through terminal
- Simple push-in termination of solid and ferruled conductors
- Pushbutton operation for connection of stranded conductors
- Suitable for railway, transporation, marine and hazardous areas
Downloads
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Brand
- Wago
- Colour
- Green/Yellow
- Current Rating
- 32A
- Depth
- 52.5mm
- Dimensions
- (L)52.3 mm x (H)32.9 mm x (W)6.2 mm x (D)52.5 mm
- Guarantee
- 1 Year
- Height
- 32.9mm
- Length
- 52.3mm
- Material
- Polyamide 66 [PA 66]
- Mounting
- DIN Rail
- Packaging Types
- Box
- Product Range
- WAGO TOPJOB S 2004 Series
- Size
- 4mm²
- Standards
- EN 60947-7-1
- Suitable For
- 0.5 - 6 mm²
- Unspsc V18
- 39121410
- Unspsc V24
- 39121410
- Voltage Rating
- 800V
- Weight
- 0.01240kg
- Width
- 6.2mm
