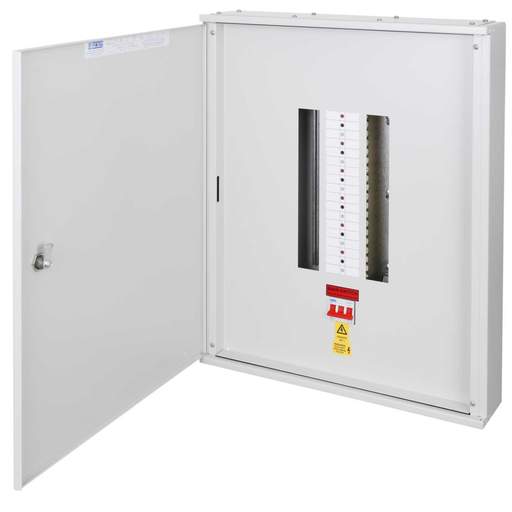

Proteus XL 12 Way 125A TP+N MCB Distribution Board with 125A Switch Disconnector

Part Code: XL12S125

Stock Code: 0723-6826

Proteus XL 12 Way 125A TP+N MCB Distribution Board with 125A Switch Disconnector

Part Code: XL12S125

Stock Code: 0723-6826

Delivery

3 In Stock

Free delivery on orders over £50

£5.95 Delivery on orders under £50

Features

  • XL range has over 100% more cabling space than standard 3 phase distribution boards
  • Lockable door option available
  • Pre-cut endplates are available for trunking applications
  • Removable door and pan assembly for ease of installation
  • Pre-fitted switch disconnector or RCD incomer options to reduce assembly on site
  • Dual earth and neutral terminal bars
  • Removable gland/endplates
  • Accepts MCB's from 2A to 63A [17.5mm] wide module
  • Accepts RCBO's from 2A to 45A [17.5mm] wide module

Downloads

Specifications

All images and text, © Copyright City Electrical Factors Ltd
All images and text, © Copyright City Electrical Factors Ltd
Brand
Proteus XL
Busbar Rating
125A
Cable Entry
Bottom
Colour
Grey
Current Rating
125A
Depth
132mm
Dimensions
(H)732 mm x (W)600 mm x (D)132 mm
Door Type
Hinged Door
Finish
Epoxy Powder Coated Paint
Guarantee
1 Year
Height
732mm
IP Rating
IP31
Incoming Device
125A 3P Isolator
Incoming Terminal Capacity
50mm²
Material
Cold Rolled Steel
Mounting
Wall
Number of Outgoing Ways
12
Packaging Types
Each
Product Range
XL Boards
Standards
BS EN 61439-3
Supplied With
125A TP Switch Disconnector
Type
Distribution Or Control Board Fixtures
Unspsc V18
39121110
Voltage Rating
415V
Weight
18kg
Width
600mm
