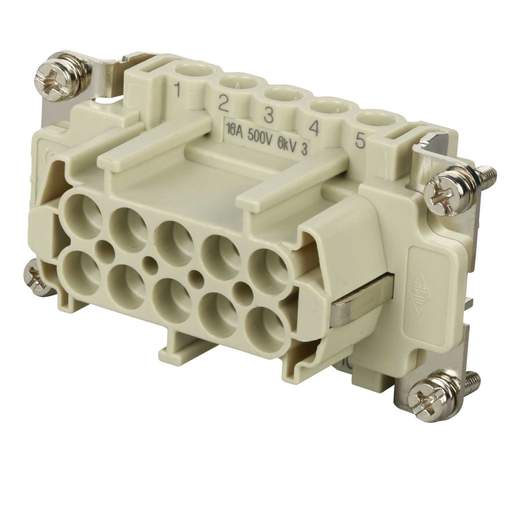

Ilme 16A 10 Pole + E Female for Screw Terminal Connections (1-10)
Part Code: CDAF10
Stock Code: 0725-6461
Ilme 16A 10 Pole + E Female for Screw Terminal Connections (1-10)
Part Code: CDAF10
Stock Code: 0725-6461
Features
- Housing is glass reinforced thermoplastic with silver plated contacts
- Thermoplastic on the housing is self-extinguishing and is rated UL 94 V0
- Operating temperature: -40°C to 125°C [-40°F to 257°F]
- Numbered 1-10
- Rated IP20
Specifications
- All images and text, © Copyright City Electrical Factors Ltd
- All images and text, © Copyright City Electrical Factors Ltd
- Colour
- Grey
- Current Rating
- 16A
- Dimensions
- (L)49.5 mm x (W)16 mm
- Finish
- Silver Plated
- Guarantee
- 1 Year
- IP Rating
- IP20
- Length
- 49.5mm
- Material
- Reinforced Thermoplastic
- Number of Poles
- 10P E
- Packaging Types
- Each
- Size
- 49.16
- Standards
- EN 61984
- Terminal Numbers
- 1 - 10
- Type
- Female
- Unspsc V18
- 39121455
- Unspsc V24
- 39121455
- Voltage Rating
- 230V
- Weight
- 0.05070kg
- Width
- 16mm
